Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-97XAD

Code: Designation: Position:
A0 Color code key 72L
CAN B Interior CAN 47K
CAN B Interior CAN 45K
E17/15 Right front footwell lamp 35L
E17/16 Left front footwell lamp 33L
E17/17 Left rear footwell lamp 17L
E17/18 Right rear footwell lamp 20L
E36/1 Center console armrest stowage compartment switch and controls illumination 8L
F32 Front electrical prefuse box 4L
F32f152 Prefuse 152 6K
F32f155 Prefuse 155 1K
F32f161 Prefuse 161 2K
N10/1 Front SAM control unit with fuse and relay module 12A
N10/1 Front SAM control unit with fuse and relay module 20A
N10/1 Front SAM control unit with fuse and relay module 28A
N10/1 Front SAM control unit with fuse and relay module 36A
N10/1 Front SAM control unit with fuse and relay module 44A
N10/1 Front SAM control unit with fuse and relay module 51A
N10/1 Front SAM control unit with fuse and relay module 4A
N10/1f12 Fuse 12 52A
N10/1f17 Fuse 17 43A
N22/7 Automatic air conditioning control and operating unit 51L
N69/1 Left front door control unit 23L
N70 Overhead control panel control unit 12L
N70 Overhead control panel control unit 43L
N70/3 Overhead control panel electronics 39L
N70/3 Overhead control panel electronics 12L
N70/3b1 Interior temperature sensor with integrated fan 40L
N70b1 Interior temperature sensor with integrated fan 45L
N72/1 Upper control panel control unit 55L
N73 Electronic ignition switch control unit 27L
R3 Front cigarette lighter with ashtray illumination 9L
R3e1 Ashtray illumination 10L
R3x1 Front cigarette lighter with ashtray illumination electrical connector 9J
S16/12 Automatic transmission mode button 60L
S16/12 Automatic transmission mode button 63L
S77 Suspension button group 66L
S77s1 Electronic level control button 65L
S77s2 Comfort and Sport button 66L
U1 Valid for USA 10G
U112 Valid for footwell lamps 32G
U112 Valid for footwell lamps 15G
U113 Valid for 2-zone THERMATIC 49G
U114 Valid for 3-zone THERMOTRONIC 49G
U12 Valid for left-hand drive vehicles 32H
U12 Valid for left-hand drive vehicles 15G
U12 Valid for left-hand drive vehicles 22G
U13 Valid for right-hand drive vehicles 32H
U13 Valid for right-hand drive vehicles 15G
U13 Valid for right-hand drive vehicles 22G
U836 Valid for AIRMATIC 61G
U89 Valid for tilting/sliding roof 10G
U89 Valid for tilting/sliding roof 41G
U897 Valid for intelligent servo module for DIRECT SELECT 22G
U942 Valid without AIRMATIC 58G
U991 Valid for all except tilting/sliding roof 10G
U991 Valid for all except tilting/sliding roof 37G
W15/5 Left front footwell ground point 35G
W15/7 Right front footwell ground point 35G
W18 Left front seat crossmember ground point 15L
W18 Left front seat crossmember ground point 8F
W19 Right front seat crossmember ground point 68L
W19 Right front seat crossmember ground point 18L
X138/1 Front center console electrical connector 61E
X138/1 Front center console electrical connector 65E
X18/37 Emergency call system button electrical connector 12H
X29/5 Armrest stowage compartment interior illumination electrical connector 7H
X30/32 Left vehicle floor interior CAN voltage distributor electrical connector 47L
X55/3 Driver seat connector block 16H
X55/3 Driver seat connector block 19J
X55/4 Front passenger seat connector block 19H
X55/4 Front passenger seat connector block 16J
Z50/1 Circuit 58d instrument panel connector sleeve 30H
Z50/3z1 Circuit 31 instrument panel connector sleeve 34H
Z51/6 Circuit 58d vehicle interior connector sleeve 9G
Z6/85 Sensor ground connector sleeve 51H
Z61/5 Center console wiring harness circuit 31 connector sleeve 60H
Z61/5 Center console wiring harness circuit 31 connector sleeve 66H
Z61/5 Center console wiring harness circuit 31 connector sleeve 63H
Z68/14 Cockpit LIN bus connector sleeve 64E
Z68/15 Center console LIN bus connector sleeve 65H
Z68/15 Center console LIN bus connector sleeve 62H
Z6z2 Circuit 31 connector sleeve 35J
Z7/19 Circuit 30 (fused) connector sleeve 65H
Z7/19 Circuit 30 (fused) connector sleeve 62H
Z7/21 Air conditioning circuit 30 connector sleeve 50H

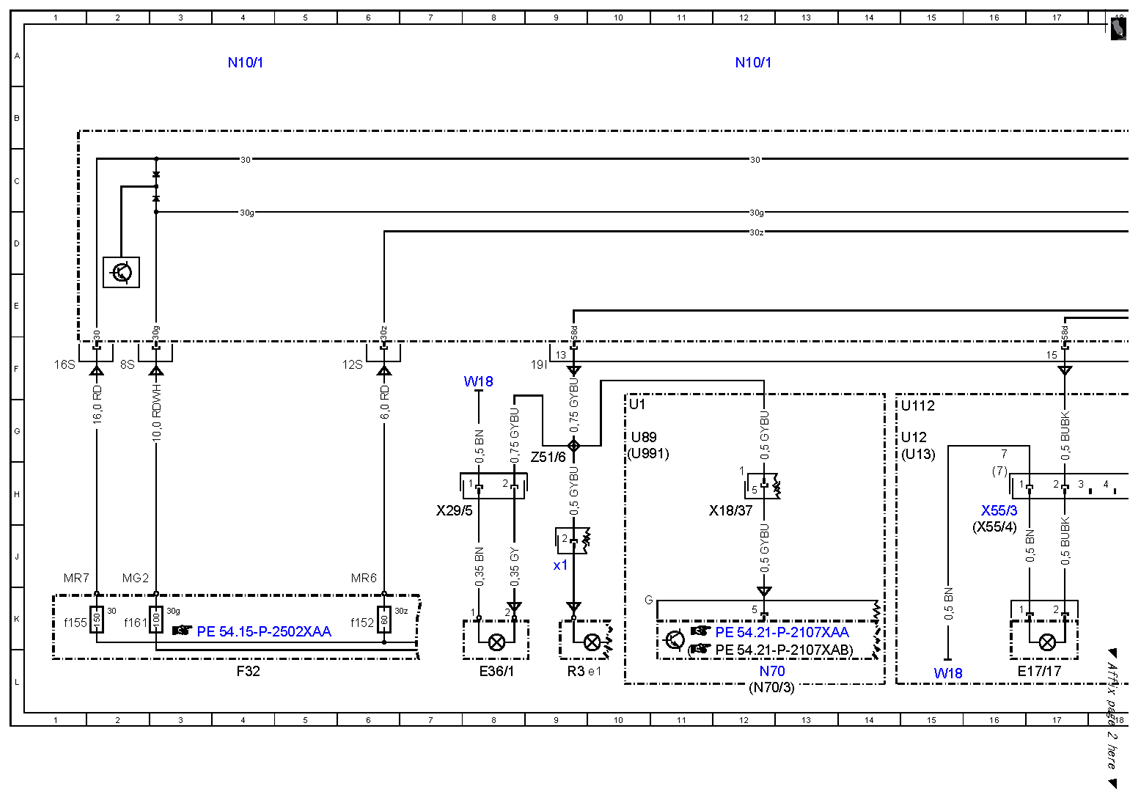

Fig 1: Front SAM Control Unit With Fuse And Relay Module Wiring Diagram (1 Of 5)
G10083685Courtesy of MERCEDES-BENZ USA

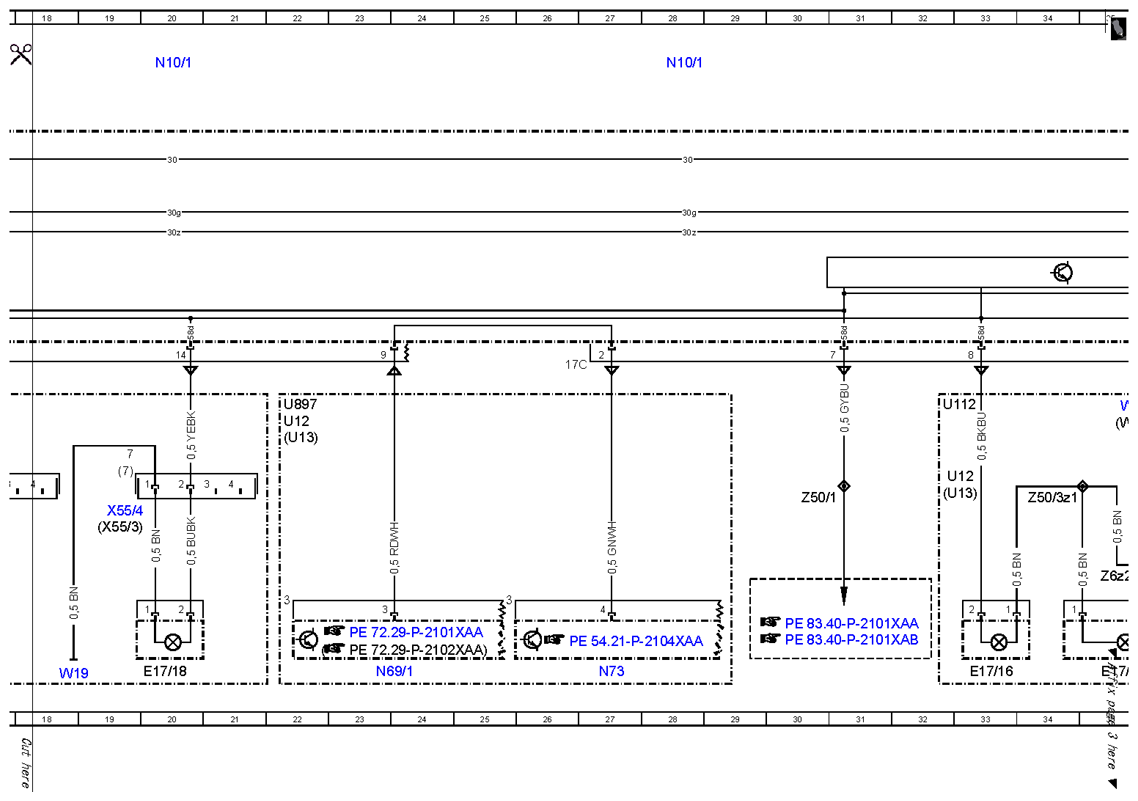

Fig 2: Front SAM Control Unit With Fuse And Relay Module Wiring Diagram (2 Of 5)
G10083686Courtesy of MERCEDES-BENZ USA

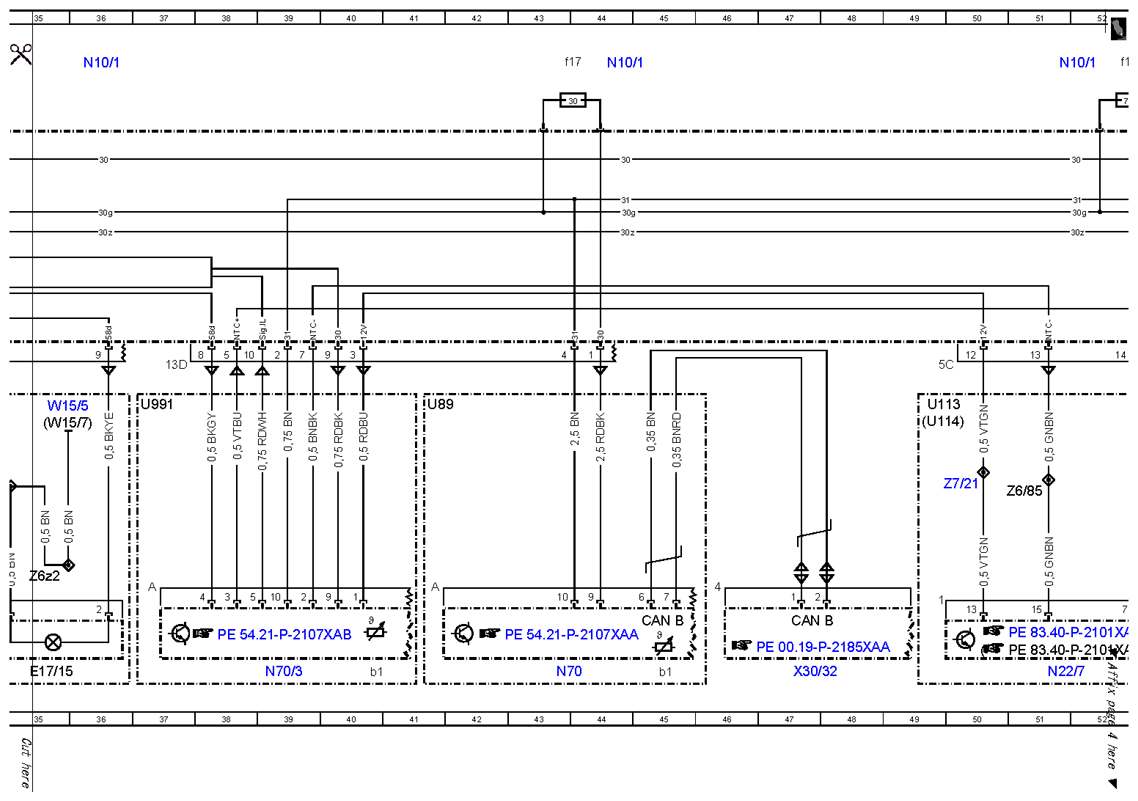

Fig 3: Front SAM Control Unit With Fuse And Relay Module Wiring Diagram (3 Of 5)
G10083687Courtesy of MERCEDES-BENZ USA

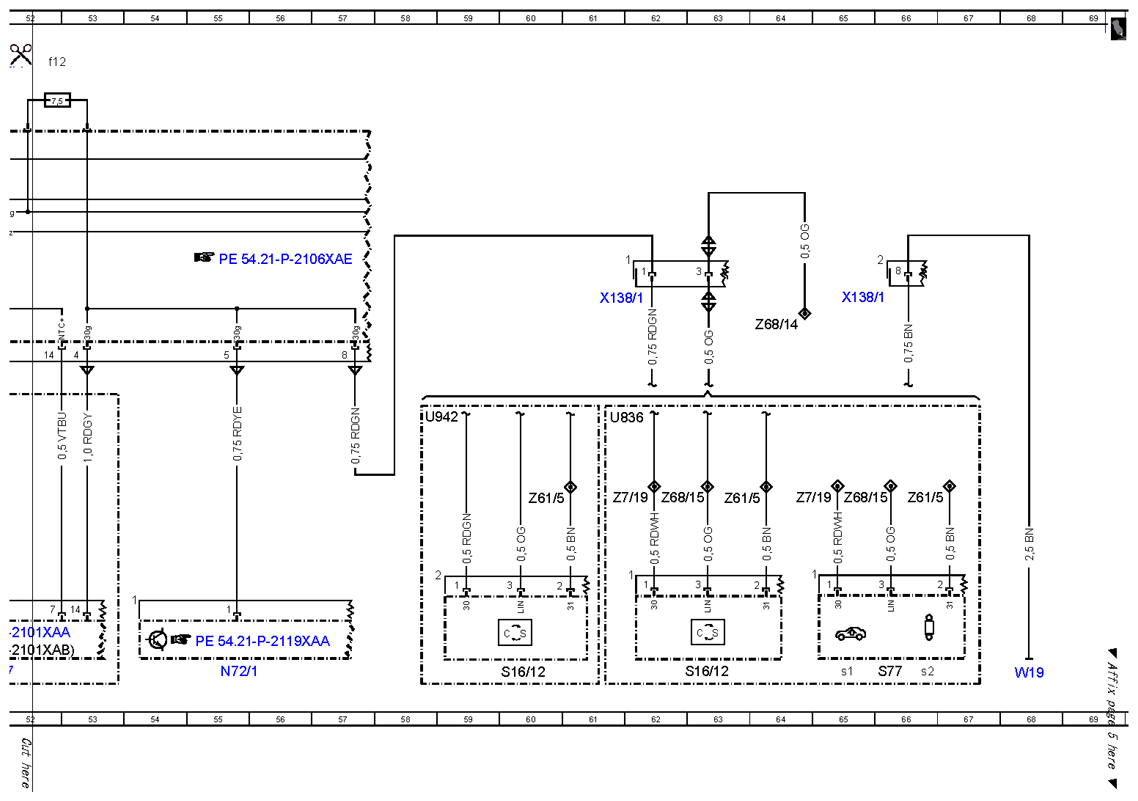

Fig 4: Front SAM Control Unit With Fuse And Relay Module Wiring Diagram (4 Of 5)
G10083688Courtesy of MERCEDES-BENZ USA

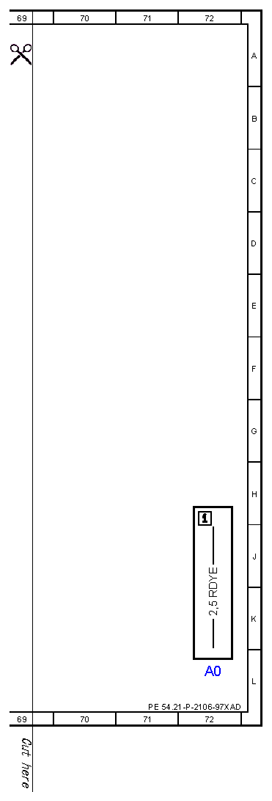

Fig 5: Front SAM Control Unit With Fuse And Relay Module Wiring Diagram (5 Of 5)
G10083689Courtesy of MERCEDES-BENZ USA
