| A0 |
Color code key |
48L |

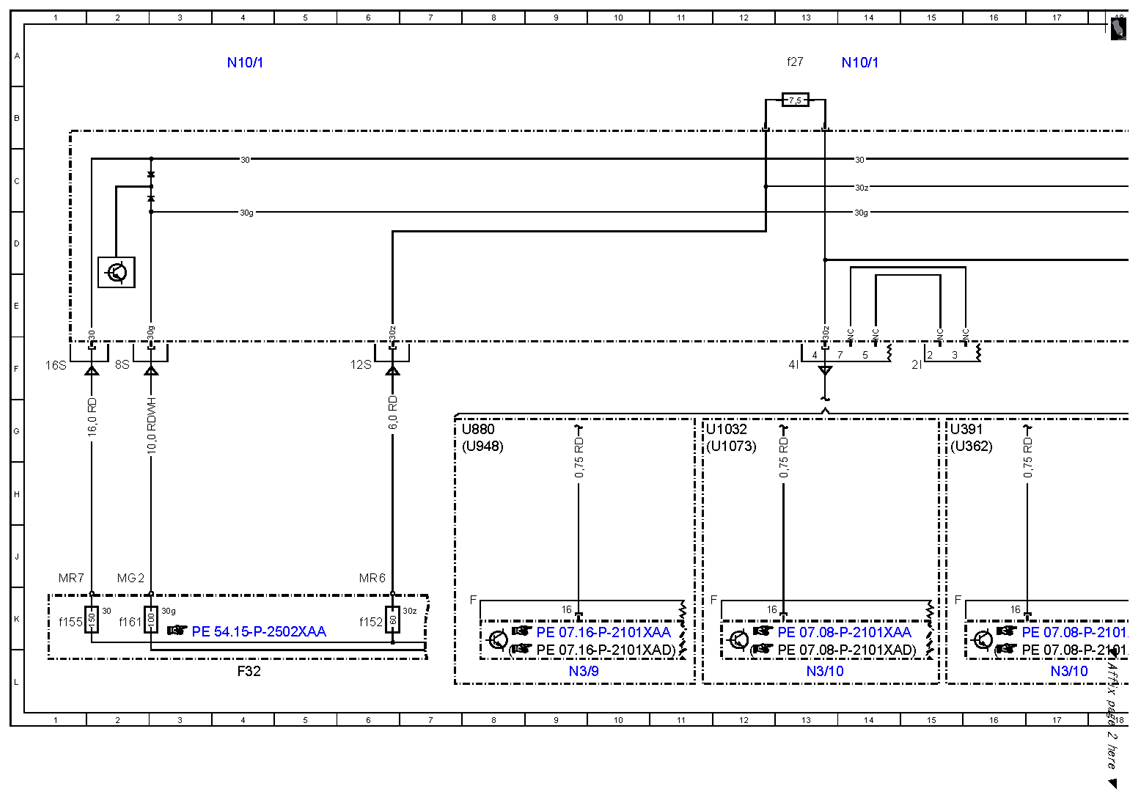

| F32 |
Front electrical prefuse box |
4L |
| F32f152 |
Prefuse 152 |
6K |
| F32f155 |
Prefuse 155 |
1K |
| F32f161 |
Prefuse 161 |
2K |
| LIN 2 |
Wiper/inside rearview mirror LIN |
27F |
| LIN 2 |
Wiper/inside rearview mirror LIN |
33F |

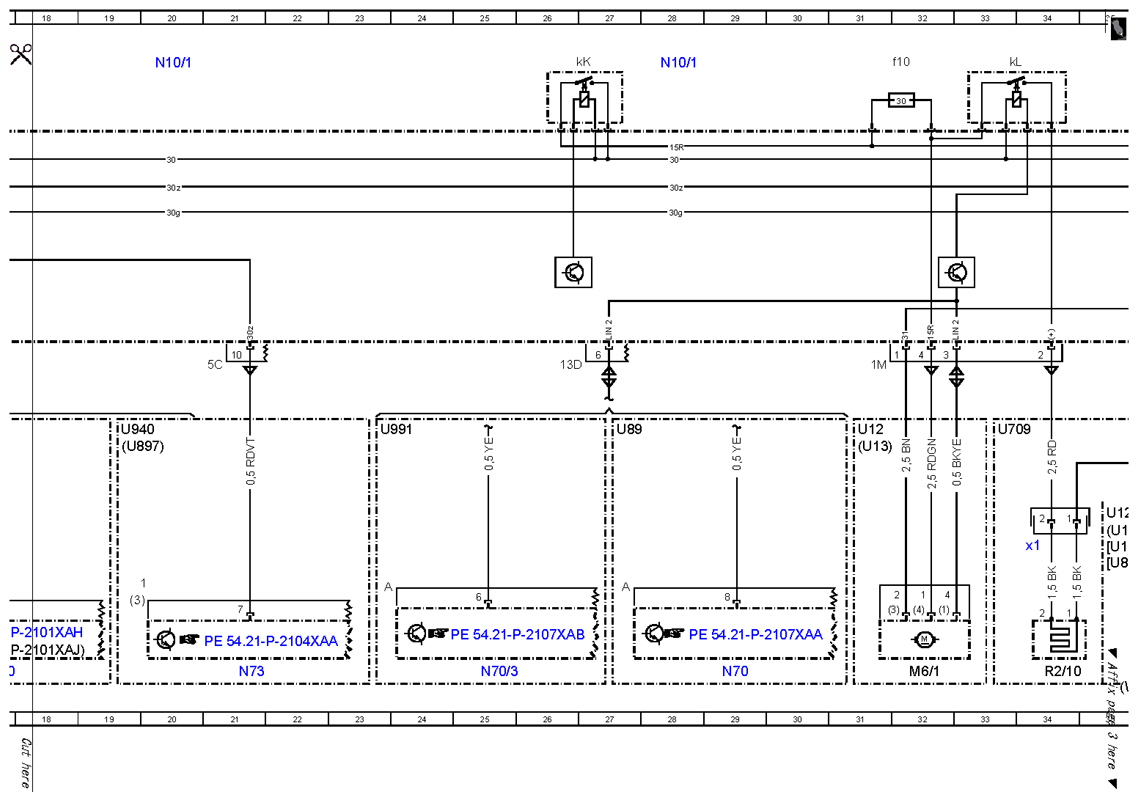

| M6/1 |
Wiper motor |
32L |
| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
14A |
| N10/1 |
Front SAM control unit with fuse and relay module |
20A |
| N10/1 |
Front SAM control unit with fuse and relay module |
28A |
| N10/1 |
Front SAM control unit with fuse and relay module |
36A |
| N10/1 |
Front SAM control unit with fuse and relay module |
42A |
| N10/1f10 |
Fuse 10 |
32A |
| N10/1f27 |
Fuse 27 |
13A |
| N10/1kK |
Circuit 15R relay |
27A |
| N10/1kL |
Wiper park position heater relay |
33A |
| N3/10 |
ME-SFI [ME] control unit |
13L |
| N3/10 |
ME-SFI [ME] control unit |
17L |
| N3/9 |
CDI control unit |
9L |
| N70 |
Overhead control panel control unit |
29L |
| N70/3 |
Overhead control panel electronics |
25L |
| N73 |
Electronic ignition switch control unit |
21L |

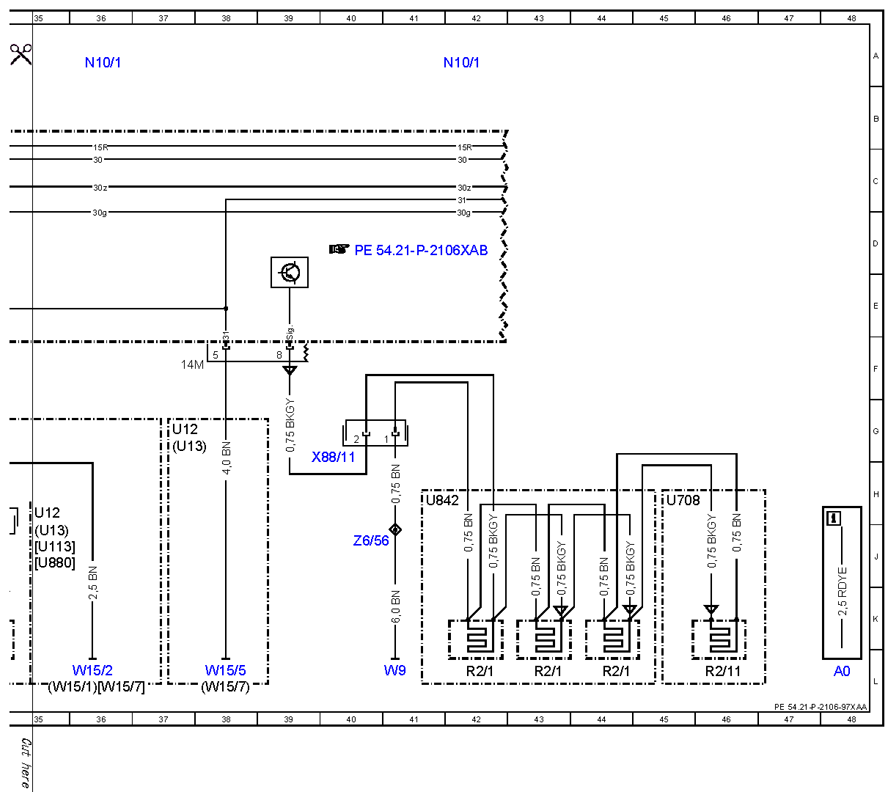

| R2/1 |
Spray nozzle heater |
43L |
| R2/1 |
Spray nozzle heater |
42L |
| R2/1 |
Spray nozzle heater |
44L |
| R2/10 |
Wiper park heater |
34L |
| R2/10x1 |
Wiper park position heater electrical connector |
34J |
| R2/11 |
Spray nozzle hose heater |
46L |
| U1032 |
Valid for engine 278 and 157 |
11G |
| U1073 |
Valid for gasoline engine 276.9 |
11G |
| U113 |
Valid for 2-zone THERMATIC |
35J |
| U12 |
Valid for left-hand drive vehicles |
31G |
| U12 |
Valid for left-hand drive vehicles |
35H |
| U12 |
Valid for left-hand drive vehicles |
37G |
| U13 |
Valid for right-hand drive vehicles |
31G |
| U13 |
Valid for right-hand drive vehicles |
35J |
| U13 |
Valid for right-hand drive vehicles |
37G |
| U362 |
Valid for gasoline engine 274 |
15G |
| U391 |
Valid for gasoline engine 276.8 |
15G |
| U708 |
Valid for spray nozzle hose heater |
45H |
| U709 |
Valid for wiper park position heater |
33G |
| U842 |
Valid for spray nozzle heater |
41H |
| U880 |
Valid for diesel engine 642 |
7G |
| U880 |
Valid for diesel engine 642 |
35J |
| U89 |
Valid for tilting/sliding roof |
27G |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
19G |
| U940 |
Valid without DIRECT SELECT |
19G |
| U948 |
Valid for diesel engine 651 |
7G |
| U991 |
Valid for all except tilting/sliding roof |
23G |
| W15/1 |
Right footwell ground point |
35L |
| W15/2 |
Left footwell ground point |
36L |
| W15/5 |
Left front footwell ground point |
38L |
| W15/7 |
Right front footwell ground point |
36L |
| W15/7 |
Right front footwell ground point |
38L |
| W9 |
Left front ground point (at lamp unit) |
41L |
| X88/11 |
Spray nozzle heater electrical connector |
40H |
| Z6/56 |
Circuit 31 connector sleeve |
40J |
