| A0 |
Color code key |
32L |
| CAN B |
Interior CAN |
27K |
| CAN E |
Chassis CAN |
24K |
| F1/1 |
Fuse box |
2L |
| F1/1f1 |
Prefuse 1 |
3L |
| G1/7 |
Additional battery |
6L |
| N10/1 |
Front SAM control unit with fuse and relay module |
10L |
| N10/1 |
Front SAM control unit with fuse and relay module |
12L |
| N10/1f19 |
Fuse 19 |
13L |
| N10/1f27 |
Fuse 27 |
14L |
| N26/5 |
Electric steering lock control unit |
17L |

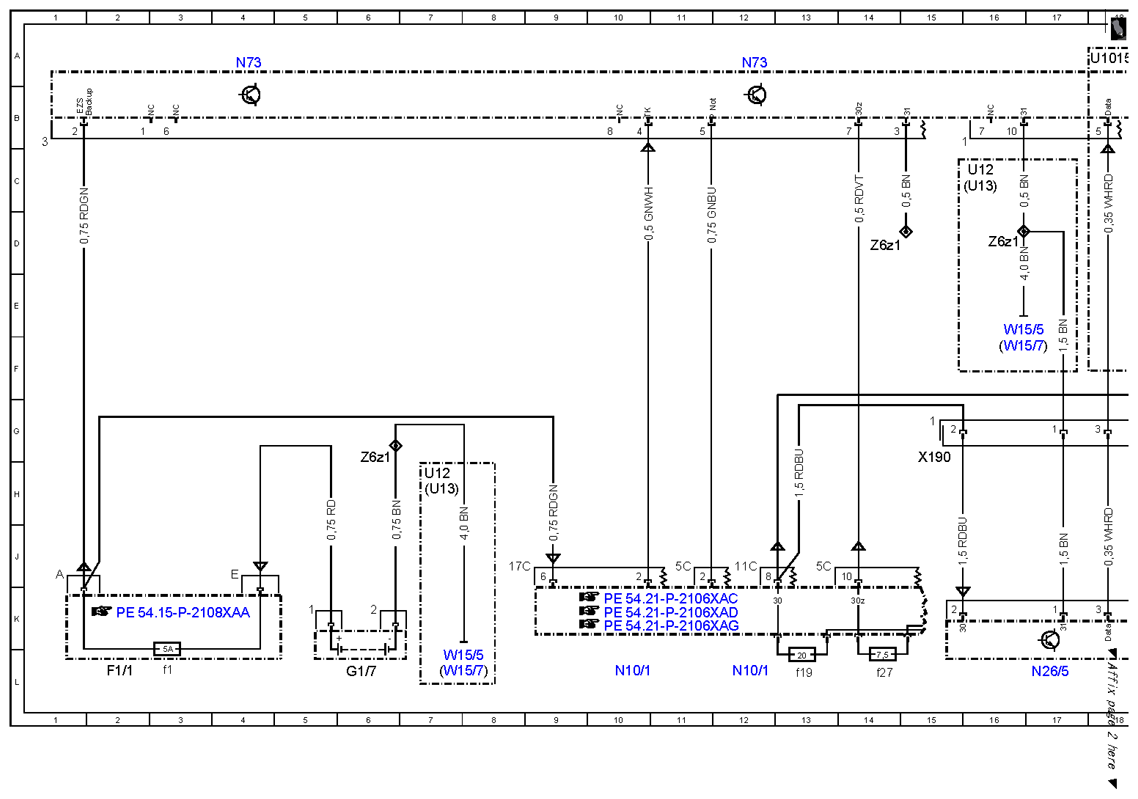

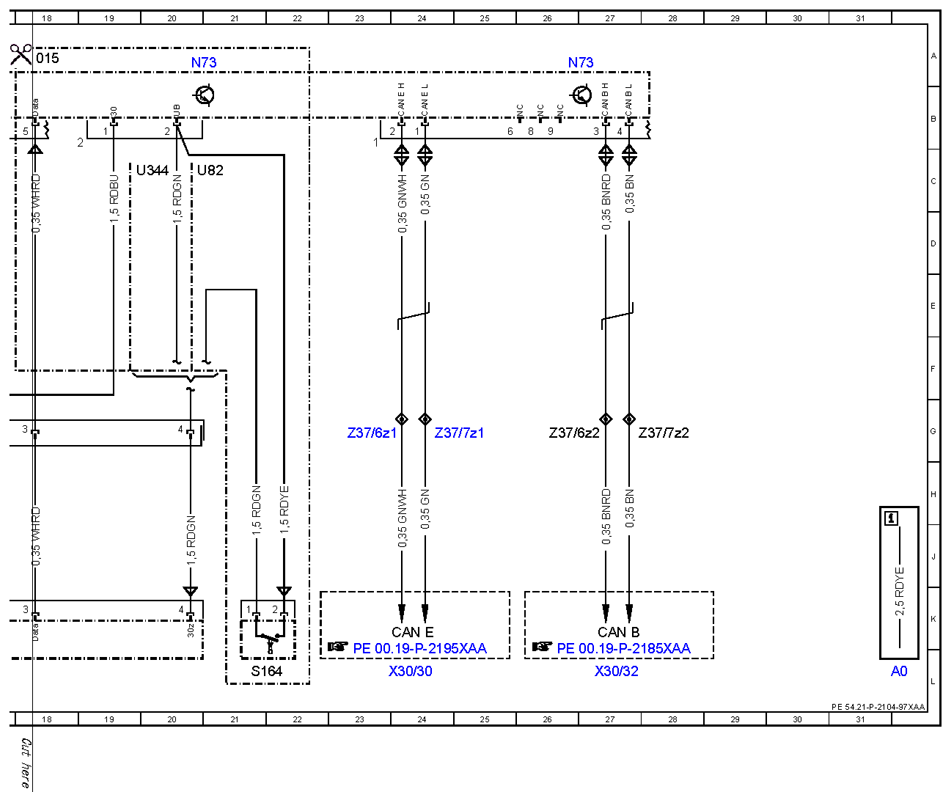

| N73 |
Electronic ignition switch control unit |
4A |
| N73 |
Electronic ignition switch control unit |
20A |
| N73 |
Electronic ignition switch control unit |
12A |
| N73 |
Electronic ignition switch control unit |
26A |
| S164 |
Automatic transmission neutral position switch |
21L |
| U1015 |
Valid for electric steering lock |
18A |
| U12 |
Valid for left-hand drive vehicles |
7H |
| U12 |
Valid for left-hand drive vehicles |
16C |
| U13 |
Valid for right-hand drive vehicles |
7H |
| U13 |
Valid for right-hand drive vehicles |
16C |
| U344 |
Valid for all except KEYLESS GO |
19C |
| U82 |
Valid for KEYLESS GO |
20C |
| W15/5 |
Left front footwell ground point |
7L |
| W15/5 |
Left front footwell ground point |
16E |
| W15/7 |
Right front footwell ground point |
7L |
| W15/7 |
Right front footwell ground point |
16F |
| X190 |
Instrument panel and electric steering lock electrical connector |
15H |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
24L |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
27L |
| Z37/6z1 |
Chassis CAN (high) connector sleeve |
23G |
| Z37/6z2 |
Interior CAN (high) connector sleeve |
26G |
| Z37/7z1 |
Chassis CAN (low) connector sleeve |
25G |
| Z37/7z2 |
Interior CAN (low) connector sleeve |
28G |
| Z6z1 |
Circuit 31 connector sleeve |
6G |
| Z6z1 |
Circuit 31 connector sleeve |
14D |
| Z6z1 |
Circuit 31 connector sleeve |
16D |
