| 1 |
Circuit 15, status |
13B |
| 2 |
Wheel speed, signal |
15G |
| 2 |
Wheel speed, signal |
15C |
| 3 |
Fuel consumption, signal |
13F |
| 3 |
Fuel consumption, signal |
15C |
| 4 |
ECO score, status |
12F |
| 4 |
ECO score, status |
14C |
| 5 |
Fuel tank fuel level indicator fill level sensor, signal |
16B |
| 5 |
Fuel tank fuel level indicator fill level sensor, signal |
21C |
| 6 |
Multifunction steering wheel button group, signal |
2E |
| 6 |
Multifunction steering wheel button group, signal |
13E |
| 6 |
Multifunction steering wheel button group, signal |
4E |
| 6 |
Multifunction steering wheel button group, signal |
14C |

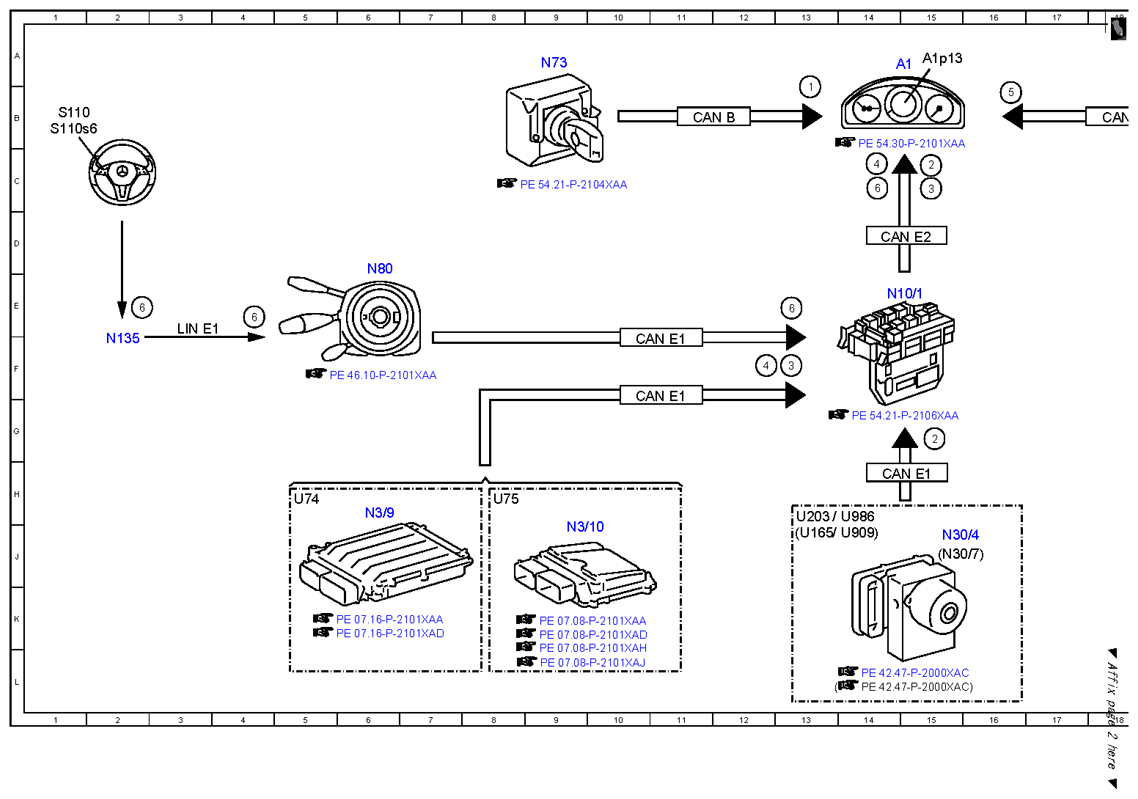

| A1 |
Instrument cluster |
14A |
| A1p13 |
Multifunction display |
15A |
| B4/1 |
Fuel tank fuel level indicator fill level sensor, left |
21E |
| B4/2 |
Fuel tank fuel level indicator fill level sensor, right |
21E |
| CAN B |
Interior CAN |
18B |
| CAN B |
Interior CAN |
11B |
| CAN E1 |
Chassis CAN 1 |
10F |
| CAN E1 |
Chassis CAN 1 |
10G |
| CAN E1 |
Chassis CAN 1 |
14H |
| CAN E2 |
Chassis CAN 2 |
14D |
| LIN E1 |
Steering LIN |
3E |
| N10/1 |
Front SAM control unit with fuse and relay module |
14E |

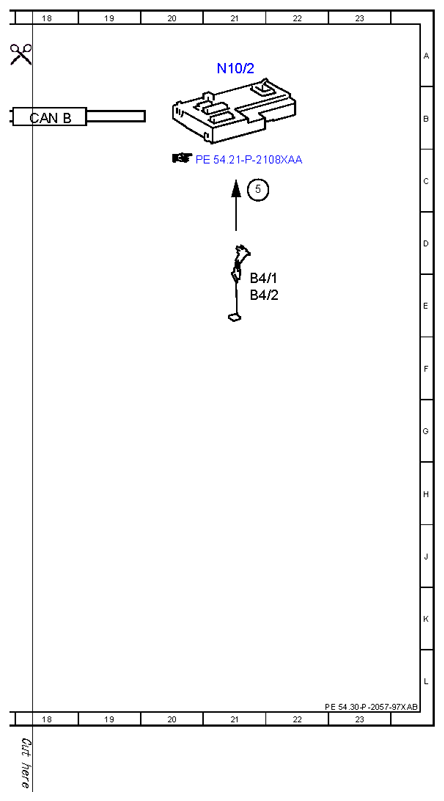

| N10/2 |
Rear SAM control unit with fuse and relay module |
21A |
| N135 |
Steering wheel electronics |
2F |
| N3/10 |
ME-SFI [ME] control unit |
9J |
| N3/9 |
CDI control unit |
6H |
| N30/4 |
Electronic Stability Program control unit |
15J |
| N30/7 |
Premium Electronic Stability Program control unit |
15J |
| N73 |
Electronic ignition switch control unit |
9A |
| N80 |
Steering column module control unit |
6D |
| S110 |
Left multifunction steering wheel button group |
1B |
| S110s6 |
OK button |
1B |
| U165 |
Valid for AMG |
13J |
| U203 |
Valid without DISTRONIC PLUS |
13H |
| U74 |
Valid for diesel engines |
5H |
| U75 |
Valid for gasoline engines |
8H |
| U909 |
Valid for DISTRONIC PLUS |
14J |
| U986 |
Not valid for AMG |
14H |
