| 1 |
Circuit 15, status |
29E |
| 1 |
Circuit 15, status |
39E |
| 2 |
Instrument cluster, message |
26F |
| 2 |
Instrument cluster, message |
43F |
| 2 |
Instrument cluster, message |
43E |
| 2 |
Instrument cluster, message |
7K |
| 2 |
Instrument cluster, message |
10B |
| 2 |
Instrument cluster, message |
29E |
| 3 |
Seat belt buckle restraint system switch, status |
19E |
| 3 |
Seat belt buckle restraint system switch, status |
25F |
| 4 |
Seat belt buckle switch, status |
29G |
| 4 |
Seat belt buckle switch, status |
30E |
| 5 |
Front passenger seat occupation, status |
19E |
| 5 |
Front passenger seat occupation, status |
25F |

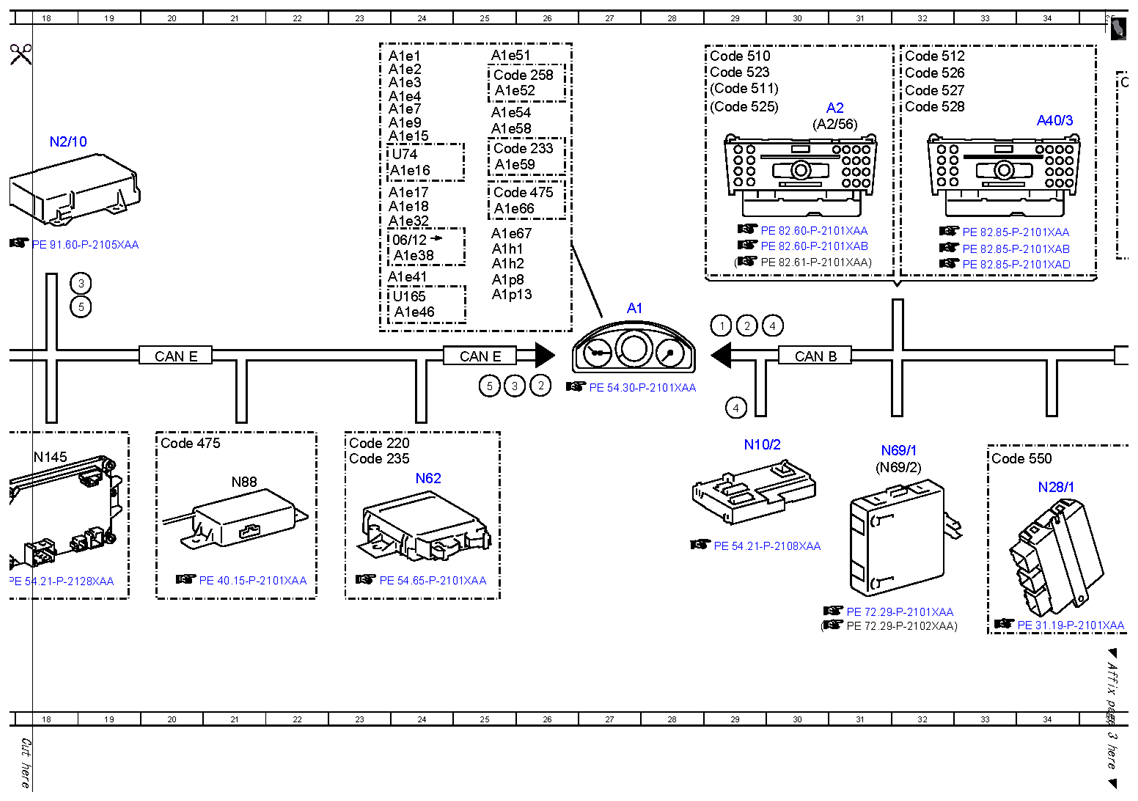

| A1 |
Instrument cluster |
27E |
| A1e1 |
Left turn signal indicator light |
23A |
| A1e15 |
Supplemental restraint system indicator lamp |
23B |
| A1e16 |
Preglow indicator lamp |
23C |
| A1e17 |
Antilock brake system indicator lamp |
23C |
| A1e18 |
Rear fog lamp indicator lamp |
23C |
| A1e2 |
Right turn signal indicator light |
23A |
| A1e3 |
High beam indicator lamp |
23B |
| A1e32 |
ESP®/ASR OFF warning lamp |
23D |
| A1e38 |
Standing lamps indicator lamp |
24D |
| A1e4 |
Fuel reserve indicator lamp |
23B |
| A1e41 |
Electronic Stability Program warning lamp |
23E |
| A1e46 |
ESP SPORT indicator lamp |
24E |
| A1e51 |
Brake system warning lamp |
25A |
| A1e52 |
COLLISION PREVENTION ASSIST warning lamp |
25B |
| A1e54 |
Coolant temperature warning lamp |
25B |
| A1e58 |
Engine diagnosis indicator lamp |
25B |
| A1e59 |
DISTRONIC warning lamp |
25C |
| A1e66 |
Tire pressure monitor warning lamp |
25D |
| A1e67 |
Low beam indicator lamp |
25D |
| A1e7 |
Brake fluid and parking brake warning lamp |
23B |
| A1e9 |
Seat belt warning lamp |
23B |
| A1h1 |
Warning buzzer |
25D |
| A1h2 |
Turn signal light function check, acoustic |
25D |
| A1p13 |
Multifunction display |
25E |
| A1p8 |
Speedometer |
25E |
| A2 |
Radio |
31B |
| A2/56 |
Radio with auto pilot system |
30B |

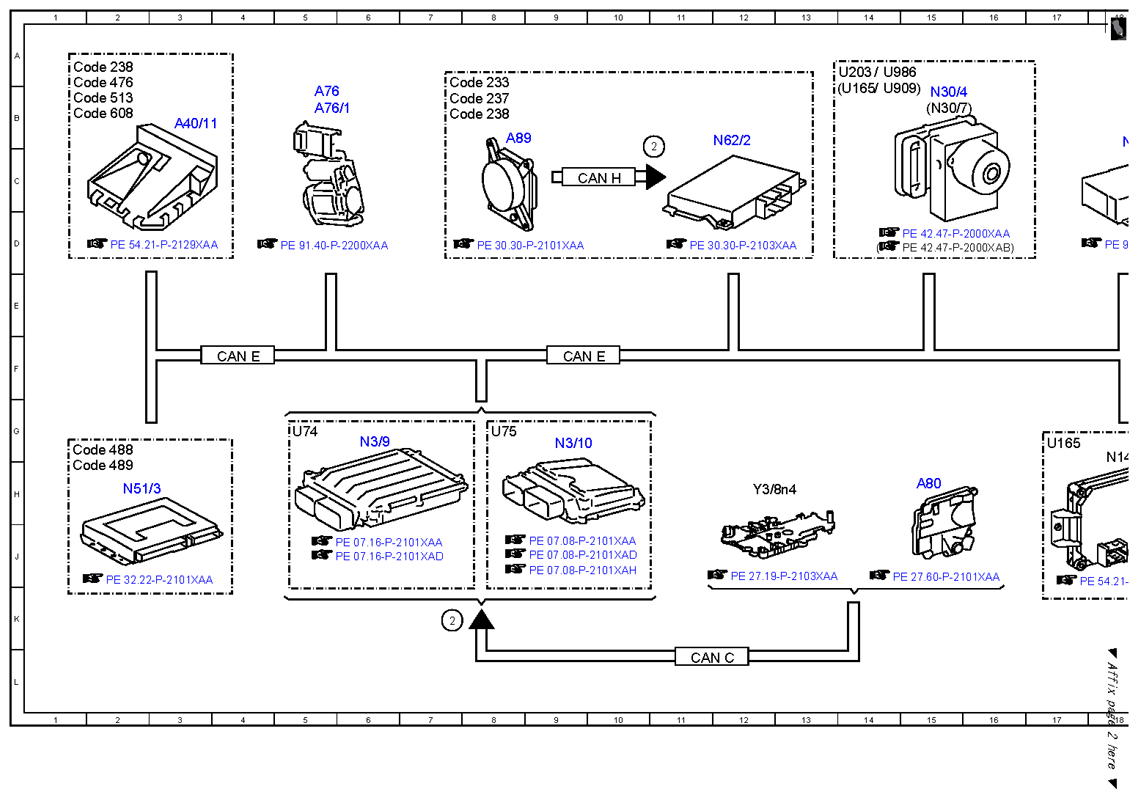

| A40/11 |
Multifunction camera |
3B |
| A40/3 |
COMAND control unit |
34B |
| A6n1 |
Stationary heater control unit |
39H |
| A76 |
Left front reversible emergency tensioning retractor |
5B |
| A76/1 |
Right front reversible emergency tensioning retractor |
5B |
| A80 |
Intelligent servo module for DIRECT SELECT |
15H |
| A89 |
DISTRONIC electric controller unit |
8B |
| B29/4 |
Left rear bumper intelligent radar sensor |
43B |
| B29/5 |
Right rear bumper intelligent radar sensor |
43B |
| CAN B |
Interior CAN |
30F |
| CAN B |
Interior CAN |
36F |
| CAN C |
Drive train CAN |
11L |
| CAN D |
Diagnostic CAN |
44F |
| CAN E |
Chassis CAN |
4F |
| CAN E |
Chassis CAN |
20F |
| CAN E |
Chassis CAN |
25F |
| CAN E |
Chassis CAN |
9F |
| CAN G |
Front end CAN |
44E |
| CAN H |
Vehicle dynamics CAN |
10C |
| Code 220 |
PARKTRONIC |
23G |
| Code 228 |
Stationary heater |
39H |
| Code 233 |
DISTRONIC PLUS |
7B |
| Code 233 |
DISTRONIC PLUS |
25C |
| Code 234 |
Blind spot assist |
42A |
| Code 235 |
Active Park Assist |
23H |
| Code 237 |
Active Blind Spot Assist |
7B |
| Code 238 |
Active Lane Keeping Assist |
7B |
| Code 238 |
Active Lane Keeping Assist |
1A |
| Code 258 |
COLLISION PREVENTION ASSIST Plus |
25A |
| Code 275 |
Memory package, electrically adjustable front seats |
36G |
| Code 348 |
Emergency call/assistance system |
45G |
| Code 359 |
TELEAID emergency call system |
45G |
| Code 475 |
Tire pressure monitor |
20G |
| Code 475 |
Tire pressure monitor |
25C |
| Code 476 |
Automatic lane detection |
1B |
| Code 488 |
Steel/air suspension |
1G |
| Code 489 |
AIRMATIC (air suspension with continuously adjustable damping) |
1H |
| Code 510 |
Audio 20 with CD changer |
29A |
| Code 511 |
Audio 50 APS incl. DVD changer |
29B |
| Code 512 |
COMAND APS with DVD changer |
32A |
| Code 513 |
Speed Limit Assist |
1B |
| Code 523 |
Audio 20 radio |
29A |
| Code 525 |
Audio 50 APS radio (CD) |
29B |
| Code 526 |
COMAND with single DVD drive (without navigation) |
32A |
| Code 527 |
COMAND APS (with navigation) |
32B |
| Code 528 |
COMAND with DVD changer |
32B |
| Code 550 |
Trailer hitch |
33H |
| Code 608 |
Adaptive Highbeam Assist |
1B |
| Code 621 |
Intelligent Light System (left-hand traffic) |
46A |
| Code 622 |
Intelligent Light System (right-hand traffic) |
46B |
| Code 889 |
KEYLESS-GO |
35B |
| E1n1 |
Left xenon lamp control unit |
45B |
| E1n9 |
Left headlamp control unit |
47B |
| E2n1 |
Right xenon light control unit |
45B |
| E2n9 |
Right headlamp control unit |
47B |

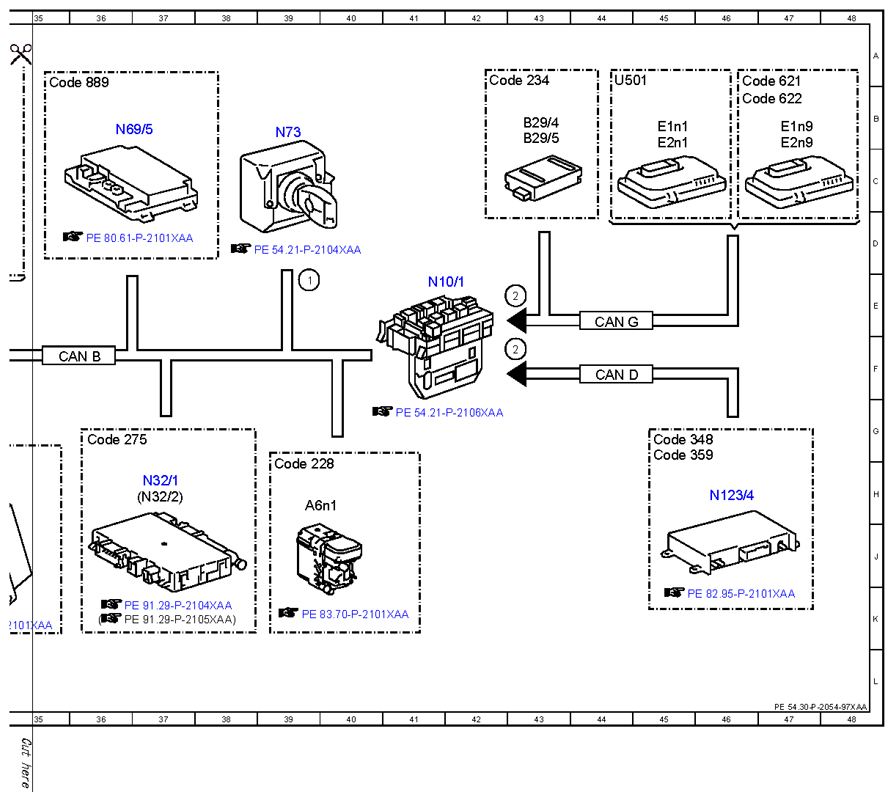

| N10/1 |
Front SAM control unit with fuse and relay module |
41E |
| N10/2 |
Rear SAM control unit with fuse and relay module |
29G |
| N123/4 |
Emergency call system control unit |
46H |
| N145 |
Transmission mode control unit |
18H |
| N2/10 |
Supplemental restraint system control unit |
18B |
| N28/1 |
Trailer recognition control unit |
34H |
| N3/10 |
ME-SFI [ME] control unit |
9G |
| N3/9 |
CDI control unit |
6G |
| N30/4 |
Electronic Stability Program control unit |
15B |
| N30/7 |
Premium Electronic Stability Program control unit |
15B |
| N32/1 |
Driver seat control unit |
37H |
| N32/2 |
Front passenger seat control unit |
37H |
| N51/3 |
AIRMATIC control unit |
2H |
| N62 |
Parking system control unit |
24H |
| N62/2 |
Video and radar sensor system control unit |
12B |
| N69/1 |
Left front door control unit |
31G |
| N69/2 |
Right front door control unit |
31H |
| N69/5 |
KEYLESS-GO control unit |
36B |
| N73 |
Electronic ignition switch control unit |
39B |
| N88 |
Tire pressure monitor control unit |
21H |
| U165 |
Valid for AMG |
17G |
| U165 |
Valid for AMG |
13B |
| U165 |
Valid for AMG |
24E |
| U203 |
Valid without DISTRONIC PLUS |
14A |
| U501 |
Valid for xenon headlamps |
44A |
| U74 |
Valid for diesel engines |
5G |
| U74 |
Valid for diesel engines |
24C |
| U75 |
Valid for gasoline engines |
8G |
| U909 |
Valid for DISTRONIC PLUS |
14B |
| U986 |
Not valid for AMG |
14A |
| Y3/8n4 |
Fully integrated transmission control unit |
12H |
