Overview of system components, automatically controlled all-wheel drive (4MATIC) - GF28.00-P-9998AVC
MODEL 218 with TRANSMISSION 722.961/966/967/971
View of model 218.3

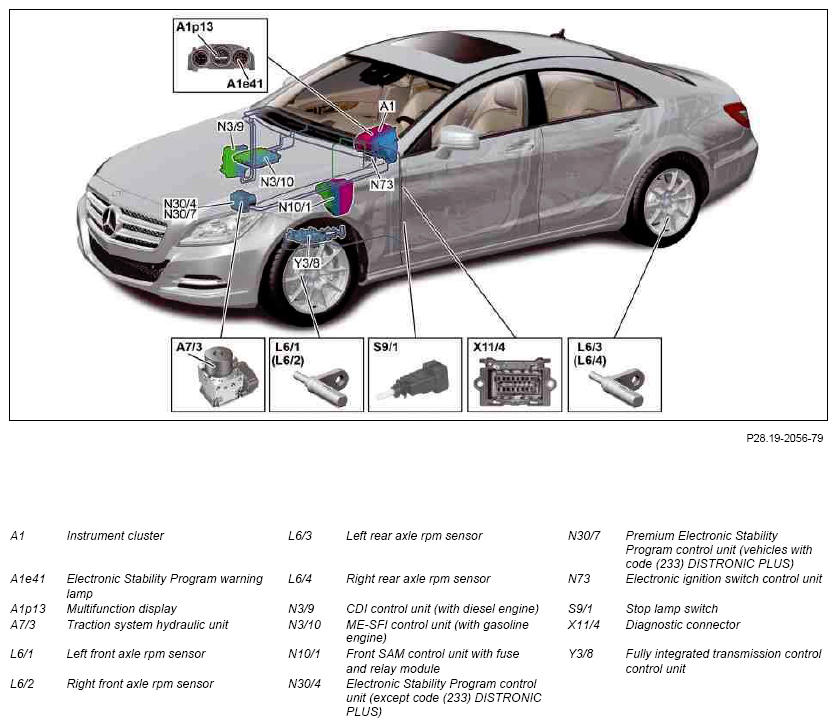

Fig 1: Overview Of Automatically Controlled All-Wheel Drive System Components - Shown On Model 218.3
| Component description for instrument cluster | A1 | GF54.30-P-6000FQ |
| Component description for CDI control unit | MODEL 218 with ENGINE 642.8 with TRANSMISSION 722.966 N3/9 |
GF07.16-P-6000OG |
| Component description for ME-SFI (ME) control unit | MODEL 218 with ENGINE 276.8 with TRANSMISSION 722.961 as of model year 2015 N3/10 |
GF07.61-P-6000MMP |
| MODEL 218 with ENGINE 157.9 with TRANSMISSION 722.971 MODEL 218 with ENGINE 278.9 with TRANSMISSION 722.967 N3/10 |
GF07.61-P-6000MMA | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FQ |
| Component description for Electronic Stability Program control unit | MODEL 218 with TRANSMISSION 722.966/967/971 up to model year 2014 N30/4, N30/7 |
GF42.45-P-5119FQ |
| MODEL 218 with TRANSMISSION 722.966/967/971 as of model year 2014 N30/4, N30/7 |
GF42.45-P-5119FQA | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FQ |
| Component description for fully integrated transmission control unit | Y38n4 | GF27.60-P-5165AHQ |
| Table of contents for function description, automatically controlled all-wheel drive (4MATIC) | GF28.00-P-0999AVC |
