Notes on bleeding brake system - AH42.10-P-0002-01T

WARNING: This page does not describe the selected car, but rather 199 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

Model 211, 219 with Sensotronic Brake Control (SBC)

Model 230

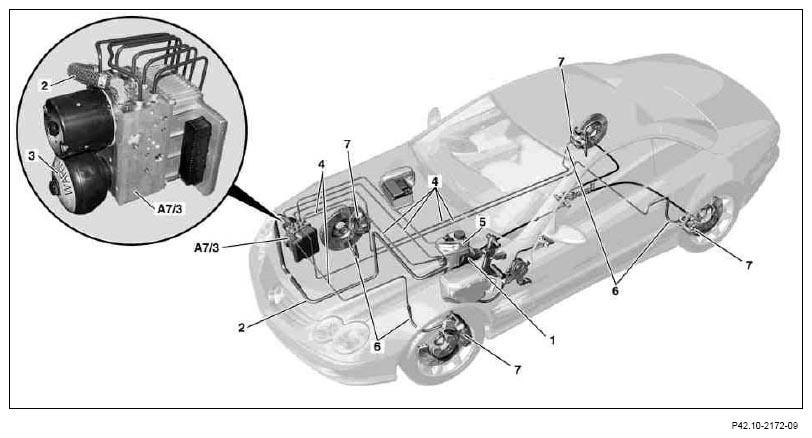

Fig 1: Identifying SBC Hydraulic Unit Components

Courtesy of MERCEDES-BENZ USA

The SBC brake system must be bled menu-assisted with STAR DIAGNOSIS after exchanging or removing/installing

the SBC hydraulic unit (A7/3)
the operating unit (1)
the suction line (2)
the pressure reservoir (3)
a brake line (4)
a brake hose (6)
a brake caliper (7)
