General notes on repairing tubular frame - AH88.50-P-0002-01V

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 171.4, 172.4, 231

Shown on model 171.4

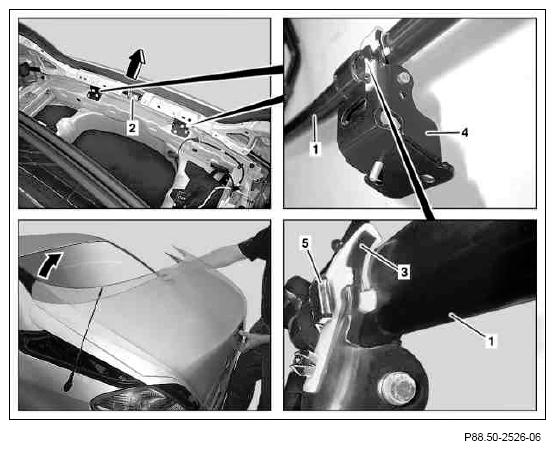

Fig 1: Moving Tubular Frame (Shown On Model 171.4)

When the tubular frame (1) is moved by hand for adjustment work or repair, it is necessary to ensure that the tubular frame (1) is simultaneously pulled toward the rear and upward when moving in the area of the striker eye (2).

This applies even when the trunk lid is locked in the trunk lid lock. Here, it is necessary to pull the trunk lid toward the rear and simultaneously upward on the handle when moving the tubular frame (1).

This serves to prevent the brackets (3) of the 2-articulated hinges (4) lying above the shackles (5) on the tubular frame (1).

When attaching the tubular frame (1) to the rear center assembly, ensure that the shackle (3) is located inside the lugs (5).

If the tubular frame (1) is moved, when the shackles (5) are over the brackets (3) of if the brackets (3) are tilted, the tubular frame (1) or the 2-articulated (4) will be damaged and the tubular frame (1) will have to be replaced.
