Notes on radio installation - AH82.60-P-0001-03P
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203.0 without CODE 753 (MB Audio 10 RDS radio) without CODE 756 (Radio MB Audio 10 CD with VK/RDS)

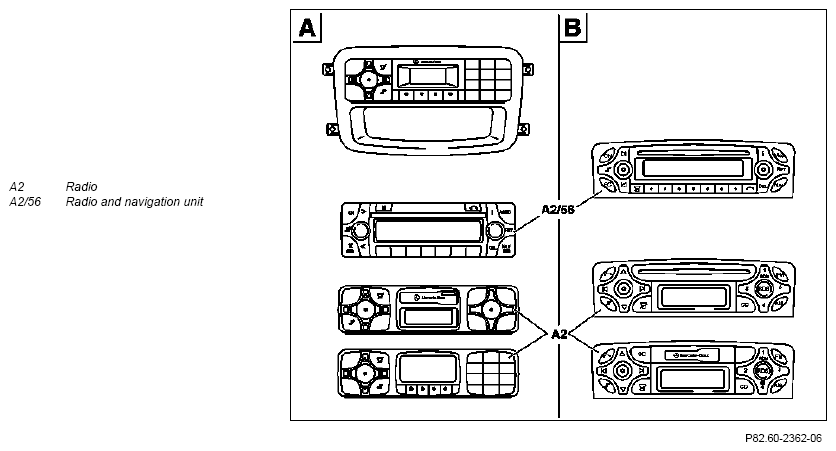

For model 203 the radios in the Audio series can be installed in the DIN slot (A) or the radios specifically made for model 203 (B). In this case it is necessary to remove the installation console together with the DIN shaft and to install a stowage tray in addition to the radio.
Vehicles that do not have a radio installed as standard, must always
be retrofitted with the radio wiring harness chamber (C).
For radios (A2) with antenna diversity (arrow) a new antenna amplifier module with diversity and the additional antenna line have to then be installed.
