Notes on radio installation - AH82.60-P-0001-03AK

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 169.0##/3## 1# up to 6/1/08, 245.2##245.2## 1# up to 6/1/08 with CODE 520 (Radio Audio 5 CD) with CODE 523 (MB Audio 20 radio) with CODE 525 (MB Audio 50 APS radio) with CODE 527 (COMAND APS (with navigation)) with CODE 533 (Front and rear speakers -without radio-) without CODE 809 (Model year 2009)

Notes on retrofitting code (520) Audio 5 CD radio

Retrofitting antenna amplifiers not necessary.

Illustrated on model 169

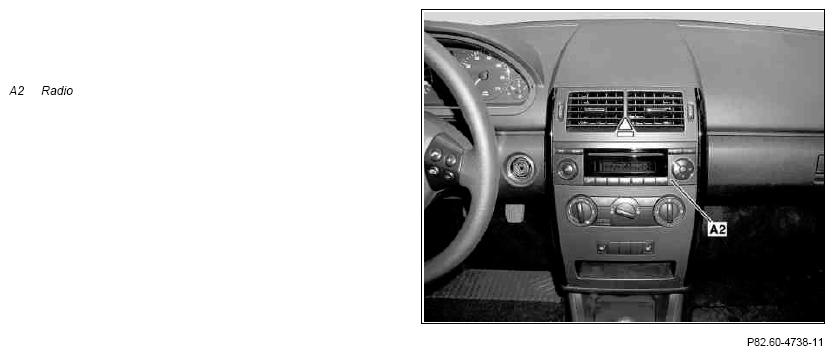

Fig 1: Identifying Radio (Illustrated On Model 169)

Courtesy of MERCEDES-BENZ USA

Notes on retrofitting code (523) MB Audio 20 radio

No antenna amplifiers are installed. Excellent radio reception is however guaranteed.

The yellow antenna line (2) is not present.

If the customer still wishes to retrofit the antenna amplifier, a great deal more additional work must be expected.

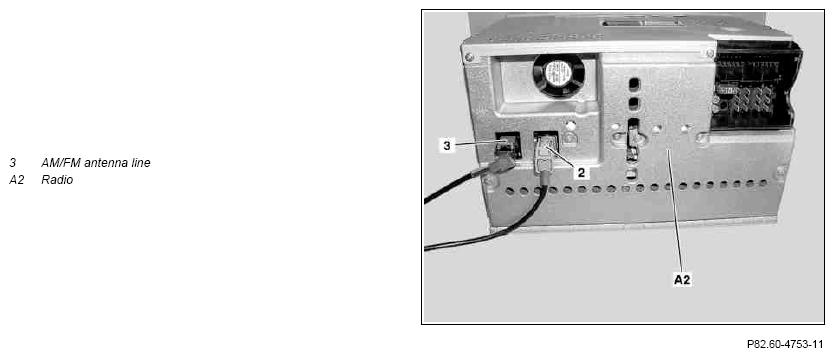

Fig 2: Identifying AM/FM Antenna Line And Radio

Courtesy of MERCEDES-BENZ USA

Notes on retrofitting code (525) MB Audio 50 APS radio

For vehicle with code (523) MB Audio 20 radio two antenna amplifiers and a left antenna amplifier module are already installed in the vehicle.

The yellow antenna line (2) has to be reconnected to the new radio and navigation unit (A2/56).

For vehicles with code (533) Front and rear speakers -without radio- or with code (520) Audio 5 CD radio no antenna amplifiers are installed. Excellent radio reception is however guaranteed.

The yellow antenna line (2) is not present.

If the customer still wishes to retrofit the antenna amplifier, a great deal more additional work must be expected.

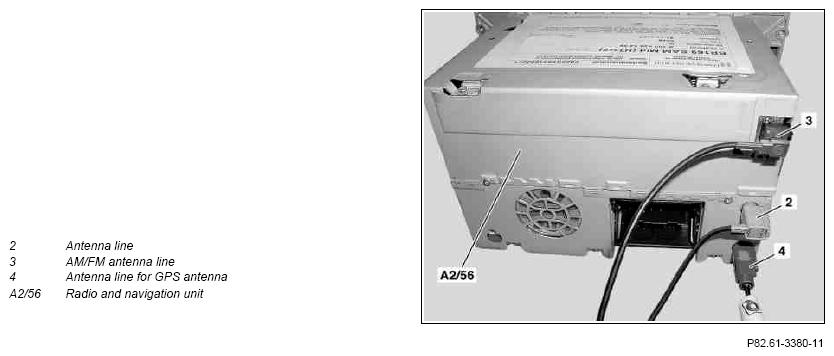

Fig 3: Identifying AM/FM Antenna Line, GPS Antenna, Radio And Navigation Unit

Courtesy of MERCEDES-BENZ USA

Notes on retrofitting code (527) COMAND APS (with navigation)

The green plug socket (1) on the COMAND operating, display and controller unit (A40/3) is for TV reception and not affected by the retrofit.

On vehicles with code (523) MB Audio 20 radio or with code (525) Audio 50 APS radio, two antenna amplifiers and a left antenna amplifier module are already installed in the vehicle.

The yellow antenna line (2) has to be reconnected to the COMAND operating, display and control unit (A40/3).

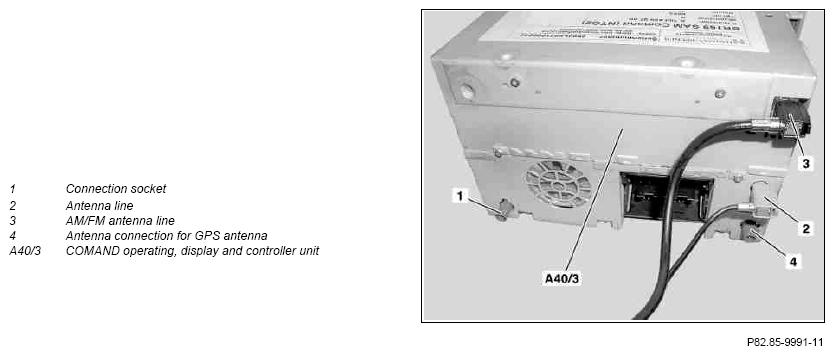

Fig 4: Identifying AM/FM Antenna Line, Connection Socket And GPS Antenna Connection

Courtesy of MERCEDES-BENZ USA
