Notes on dynamic guidance for APS - AH82.61-P-0001-04B

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 220 up to 7/31/99 with CODE 352 (COMAND operating and display system) with APS of 3rd device generation

Notes on destination-oriented navigation with TMC (fee-free traffic messages from radio stations).

The installation of dynamic destination-oriented navigation system described below applies only for navigation with COMAND. As of software release Q14 this is immediately possible.

Devices with software release Q13 to Q10 can be updated using a special Update-CD to software release Q14.

In new vehicles (as of 08.99) devices with Q-status Q1 and Q2 are installed, these devices are next generation COMAND devices. In these devices, the dynamic destination-oriented navigation system can always be retrofitted. An update is not necessary.

Check the software release:

Remove COMAND operating, display and controller unit. Search for a round adhesive label bearing the software release on the right side of the device.

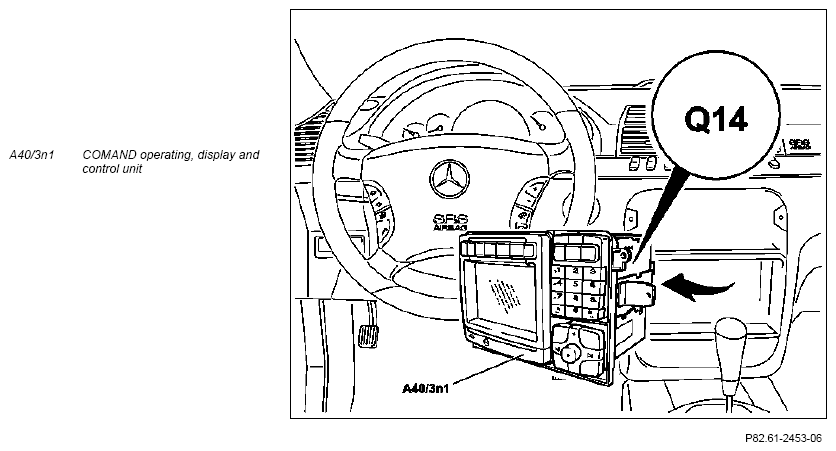

Fig 1: Identifying COMAND Operating, Display And Controller Unit

Courtesy of MERCEDES-BENZ USA

If necessary please request the Download-CD from your local contact person in the Daimler Sales Organization Technical Workshop Support. If necessary quote vehicle ident. number, delivery address, contact person and reason for request.

The dynamic destination-oriented navigation system described in the operating instructions.

The customer is to be notified that the retrofitted dynamic destination-oriented navigation system only operates with the toll-free traffic message channel (TMC). The TCS information source (subject to a fee) is not available.
