Notes on converting portable cellular telephone installation kit - AH82.70-P-0001-08A
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 129, 168, 170, 202, 208, 210, 215, 220 with CODE 278 (Complete telephone preinstallation without portable CTEL) with CODE 317 (D-net portable CTEL (D2B)) with CODE 854 (MB portable CTEL)
Vehicles with preinstallation for cell phone system (code 278) or D-net cell phone telephone (code 317) Nokia 3110 may be converted to the new cell phone generation Nokia 5110, 5130, 6110, 6150, 6210. The new generation of cell phones 6150 and 6210 are dual band cell phones (D-net, GSM-1800 network). For vehicles with steering wheel control the cell phone can also be operated from the steering wheel.

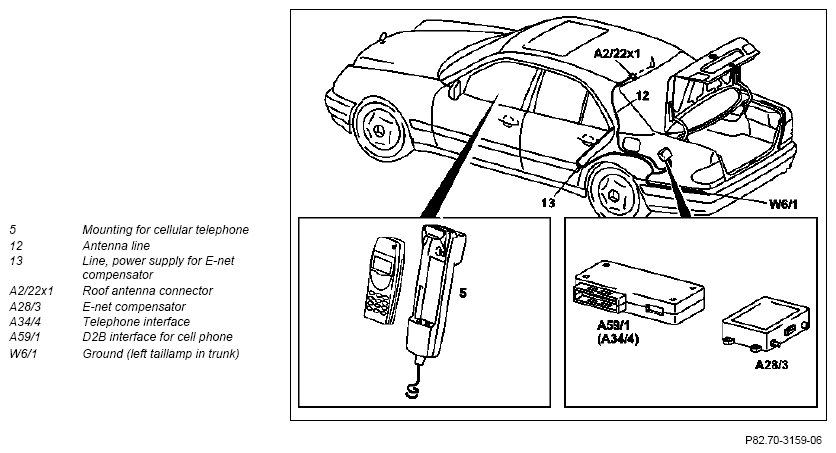

Shown on model 210 Sedan with telephone installation on center console at right
Courtesy of MERCEDES-BENZ USA
The dual band function requires the installation of a compensator for the GSM-1800 network (A28/3) as well as the conversion of the antenna line (12) and installation of a power supply through a wiring harness for the E-net compensator (13).
The increased outlay required for conversion to the dual band function is to be discussed with the customer.
Vehicles with code 854 and Nokia 6150 cell phone are already equipped with a compensator for the GSM-1800 network (A28/3).
For conversion to the Nokia 6210 only the resistor from the conversion kit has to be connected to the compensator, the adapter mounted onto the cell phone holder, and the new D2B interface (A59/1) mounted. The interface for the Nokia 6210 only operates as from cell phone software release 4.36. All older Nokia 6210 models must undergo a software update.
