Wiper system (WSA), function - GF82.30-P-0003FQ

MODEL 218

As of 1.3.13

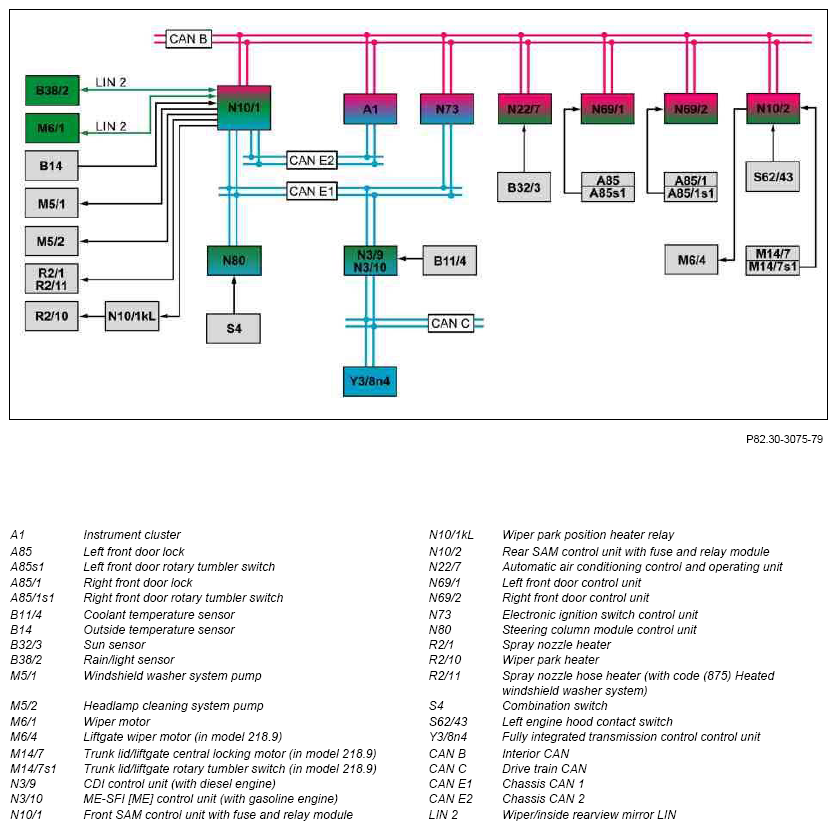

Fig 1: Wiper System Block Diagram

Courtesy of MERCEDES-BENZ USA

Up to 28.2.13

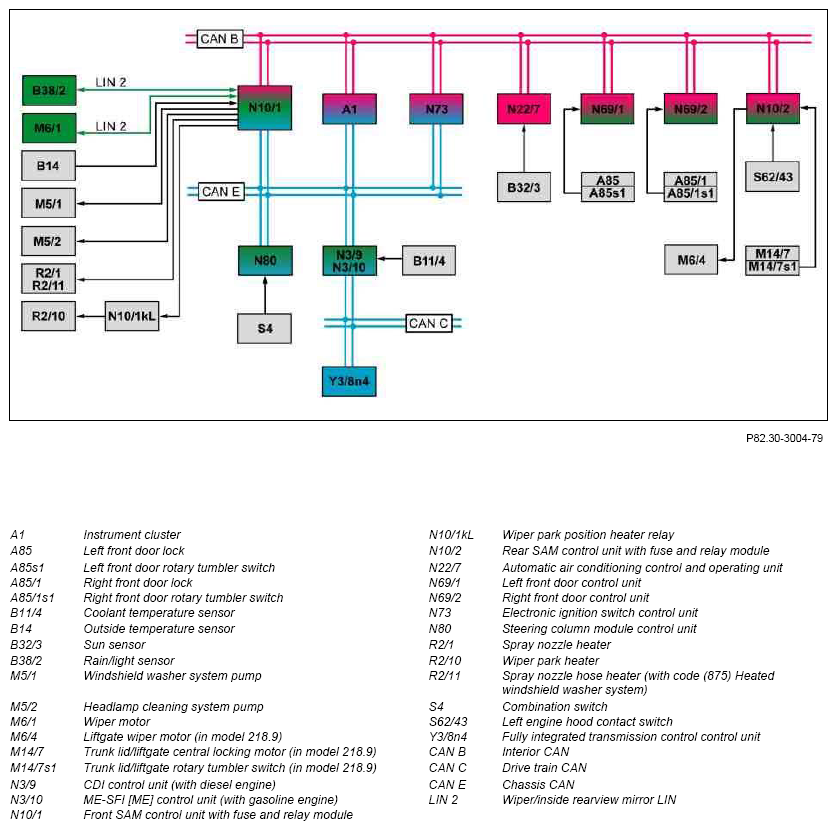

Fig 2: Wiper System Block Diagram

Courtesy of MERCEDES-BENZ USA

Wiper system, general

The wiper system controls the wiping and washing of the windshield, as well as the rear window on model 218.9. The front SAM control unit evaluates all the input factors relevant for the individual functions and actuates the wiper system.

The wiper system function comprises the following subfunctions :

• Windshield wiper, function
• Windshield washer, function
• Headlamp cleaning system, function
• Heating wiper support, function
• Washer nozzle/washer nozzle hose heater, function
• Rear window wiper system (WSA) function (in model 218.9.)
