Component description for Electronic Stability Program control unit - GF42.45-P-5119FLM

MODEL 212 (except 212.095/098/298) as of model year 2014

Shown on model 212.0

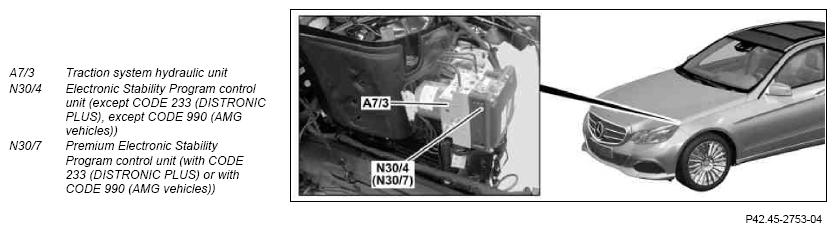

Fig 1: Identifying Electronic Stability Program Control Unit Components - Shown On Model 212.0
G10084469Courtesy of MERCEDES-BENZ USA

Location

The Premium Electronic Stability Program control unit is on the traction system hydraulic unit at the front left inside the engine compartment.

Task

The Electronic Stability Program control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or the Premium Electronic Stability Program control unit (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles)) contains the control elements for the following systems:

IMPORTANT On vehicles with CODE 23P (Driving assistance package), the limiter and the cruise control are integrated in the radar sensors control unit (N62/1).

The Electronic Stability Program control unit or Premium Electronic Stability Program control unit has the following tasks:

Reading in of sensors, pickups and signals

The input factors are read in via the following connections:

Direct line

The following signals are read in via direct lines:

Chassis CAN 1

The Electronic Stability Program control unit (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles)) or the Premium Electronic Stability Program control unit (with CODE 233 (DISTRONIC PLUS)) or with CODE 990 (AMG vehicles)) is a subscriber on chassis CAN 1. It communicates with, for example, the following control unit:

Vehicle dynamics CAN

The data from the following component are read in via the vehicle dynamics CAN:

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the affected components are then actuated.

Actuation of components

Components are actuated with the following line:

Direct line

The following components are actuated via direct lines:

  Wiring diagram for Adaptive Brake (ABR) (N30/4)   PE42.47-P-2000-97DAA
      PE42.47-P-2000-97DAB
