Check condition of rear axle and rear axle ball joints - AP35.20-P-3552A
MODEL 205, 253

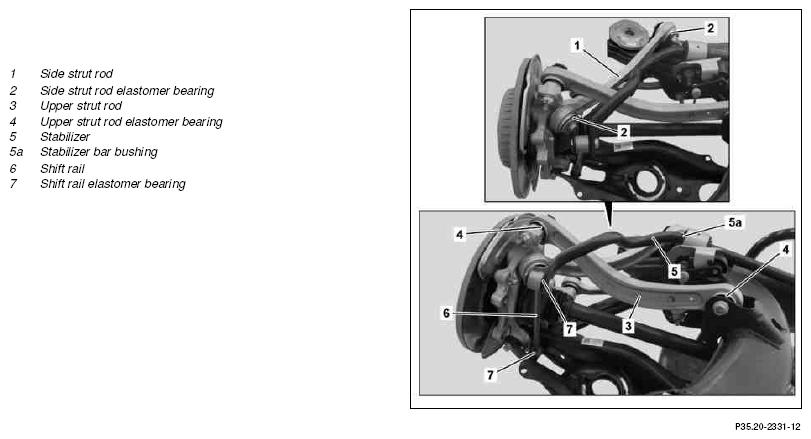

Shown in model 205

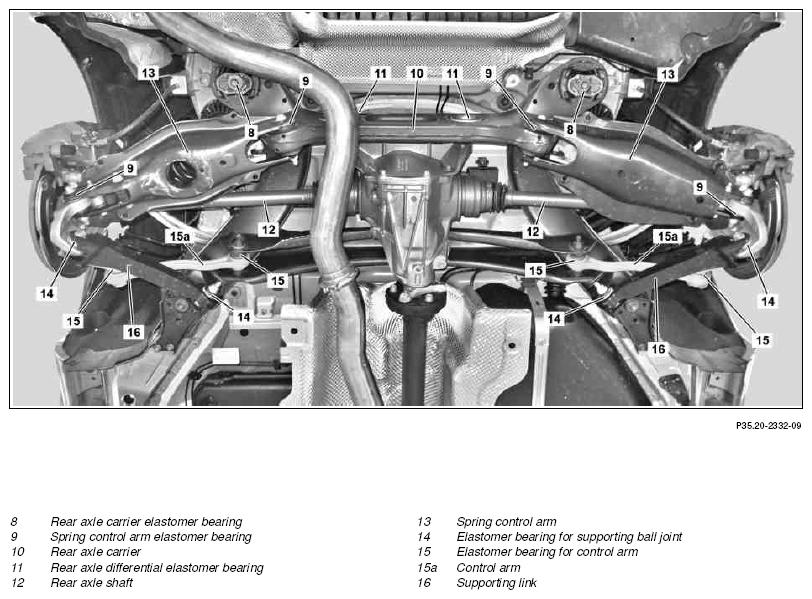

Shown in model 205

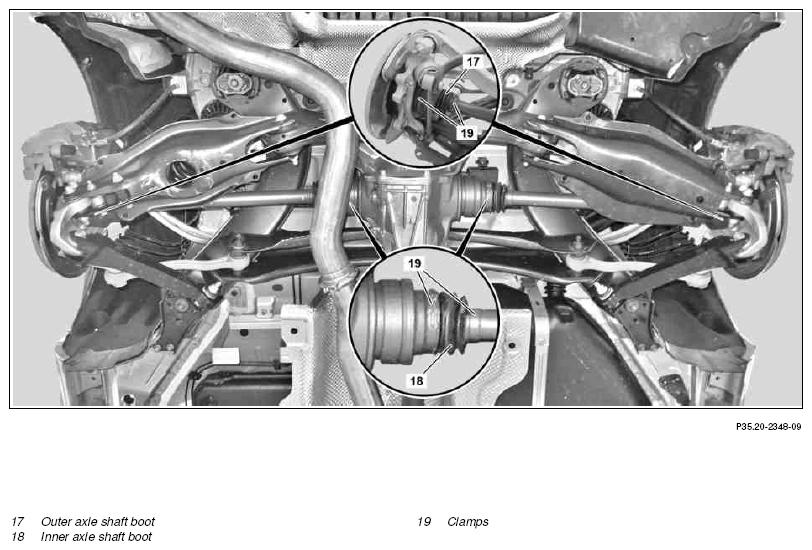

Shown in model 205
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Preparatory tasks | |||
| 1 | Release parking brake | ||
| 2 | Lift vehicle on vehicle lift | ||
| AR00.60-P-1002LWG | |||
| Check | |||
| 3 | Check wheel bearing by firmly pulling, pushing and turning the wheels | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 4 | Check side strut rods (1) for cracks, deformation and corrosion | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 5 | Check side strut rod elastomer bearing (2) for cracks, deformation and wear and for play by firmly pulling and pushing | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 6 | Check upper strut rods (3) for cracks, deformation and corrosion | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 7 | Check elastomer bearing for upper strut rods (4) for cracks, deformation and wear, as well as for play by firmly pushing and pulling | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 8 | Check stabilizer bar (5) for cracks, deformation and corrosion | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 9 | Check stabilizer bushings (5a) for cracks, deformation and wear and for play by firmly pulling and pushing | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 10 | Check shift rails (6) for cracks, deformation and corrosion | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 11 | Check shift rail elastomer bearing (7) for cracks, deformation and wear, and for play by firmly tugging and pushing | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 12 | Check spring control arm (13) for cracks, deformation and corrosion | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 13 | Check spring control arm elastomer bearing (9) for cracks, deformation and wear and for play by firmly tugging and pushing | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 14 | Check supporting link (16) for cracks, deformation and corrosion | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 15 | Check elastomer bearing for supporting ball joint (14) for cracks, deformation and wear as well as for play by firmly pulling and pushing | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 16 | Check control arm (15a) for cracks, deformation and corrosion | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 17 | Check elastomer bearing for control arm (15) for cracks, deformation and wear as well as play by firmly tugging and pushing | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 18 | Check rear axle carrier (10) for cracks, deformation and corrosion | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 19 | Check rear axle differential elastomer bearing (8) for cracks, deformation and wear | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 20 | Check elastomer bearing for rear axle differential (11) for cracks, deformation and wear | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 21 | Check rear axle shafts (12) for condition | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 22 | Check outer drive shaft boots (17) for condition, leaktightness and correct seating. | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 23 | Check inner drive shaft boots (18) for condition, leaktightness and correct seating. | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| 24 | Check clamps (19) for condition and seating | If there are problems: ↓ Repair the problem, subject to separate repair order. |
|
| Concluding tasks | |||
| 25 | Lower vehicle with lifting platform | ||
| AR00.60-P-1002LWG |
