Remove/install rear seat cushion - AR91.12-P-1020LWA

MODEL 205 with CODE 248 (Rear seat with integrated child seat)

MODEL 205 with CODE P10 (Taxi package Germany)

Shown on MODEL 246

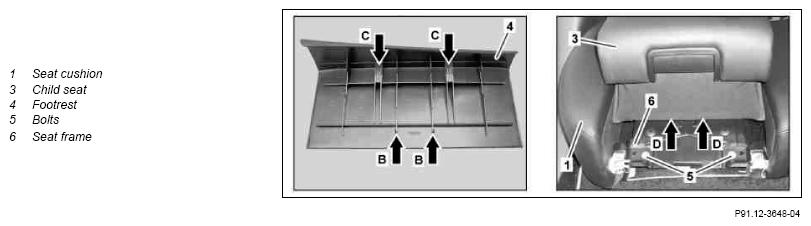

Fig 1: Rear Seat Cushion Remove/Install Components - Shown On Model 246 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

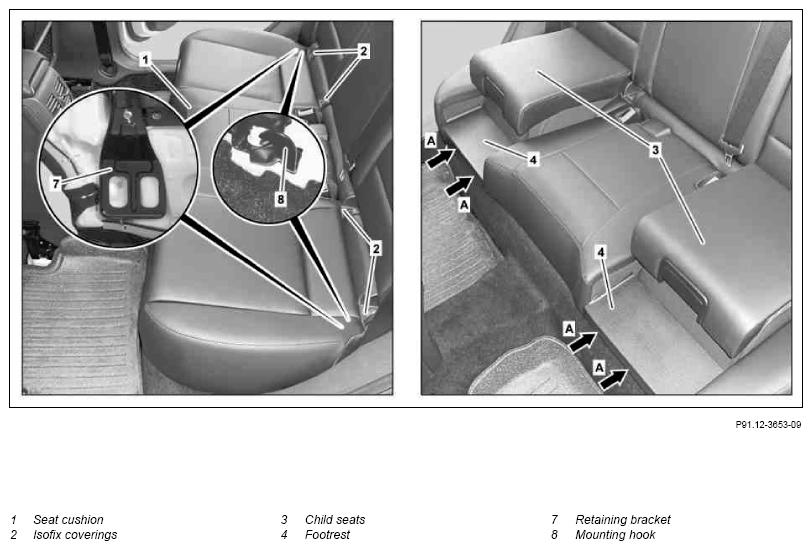

Fig 2: Rear Seat Cushion Remove/Install Components - Shown On Model 246 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Extend child seats (3)
2	Insert a suitable tool at each of the markings (arrows A) of left and right footrest (4), alternately push back the catch hooks (arrows C) and remove the corresponding footrest (4) horizontally from seat frame (6)	Insert guides (arrows B) of footrests (4) in cutouts (arrows D) of corresponding seat frame (6).
3	Remove screws/bolts (5) from left and right seat frame (6)	Readjust seat cushion (1) after installing it.
		MODEL 205.0/2 with CODE 248 (Rear seat with integrated child seat) MODEL 205.0/2 with CODE P10 (Taxi package Germany)	*BA91.12-P-1009-03M
4	Push seat cushion (1) backwards against the backrest and unhook mounting frame bow (7) upwards from mounting hooks (8)	Check correct seating of mounting frame bows (7) in mounting hooks (8).
5	Pull seat cushion (1) forward and remove	Guide seat belt buckles through the seat cushion (1). Smooth folds in seat cover in area of Isofix covers (2).
6	Install in the reverse order
