Remove/install rear folding backrest - AR91.12-P-1721LWR

MODEL 205.4

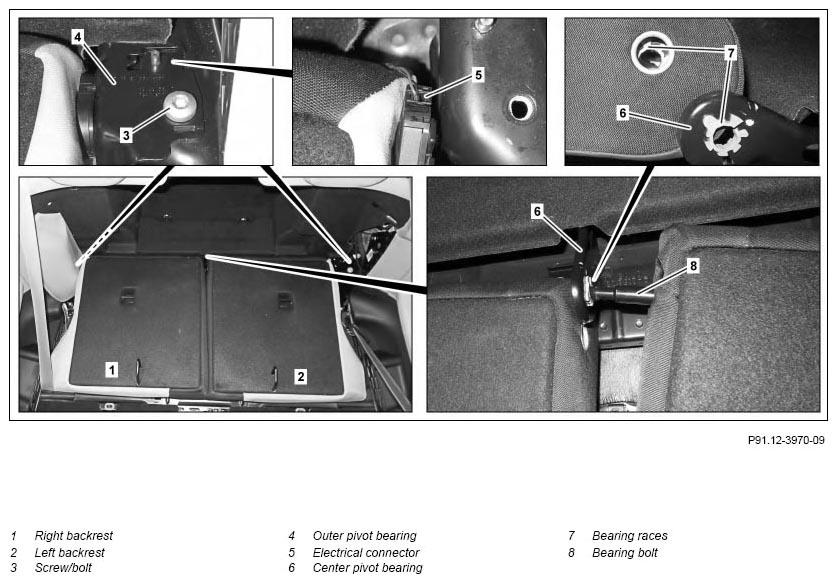

Fig 1: Rear Folding Backrest Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left or right seat side bolster		AR91.12-P-1711LWR
2	Release left backrest (2) and right backrest (1) and fold forwards
3	Remove screw/bolt (3) from left or right outer pivot bearing (4)	Bolt, pivot bearing to backrest frame	*BA91.12-P-1007-03M
4	Disconnect electrical connection (5) from left or right outer pivot bearing (4)
5	Detach left backrest (2) at center pivot bearing (6) from right backrest (1) and remove	Do not tilt bearing pin (8) on center pivot bearing (6). Otherwise, the bearing races (7) may be damaged. Note installation position of bearing races (7). Replace damaged bearing races (7).
6	Remove right backrest (1)	For removal of right backrest (1).
7	Install in the reverse order

REAR SEATS

Number	Designation		Model 205.4
BA91.12-P-1007-03M	Bolt, pivot bearing to backrest frame	Nm	65
