Remove/install right inertization system line in engine compartment - AR86.10-P-0419LWE

MODEL 205, 213, 238, 253 with ENGINE 177, 274, 276

with CODE 2U8 (Alternative refrigerant)

Shown on engine 276

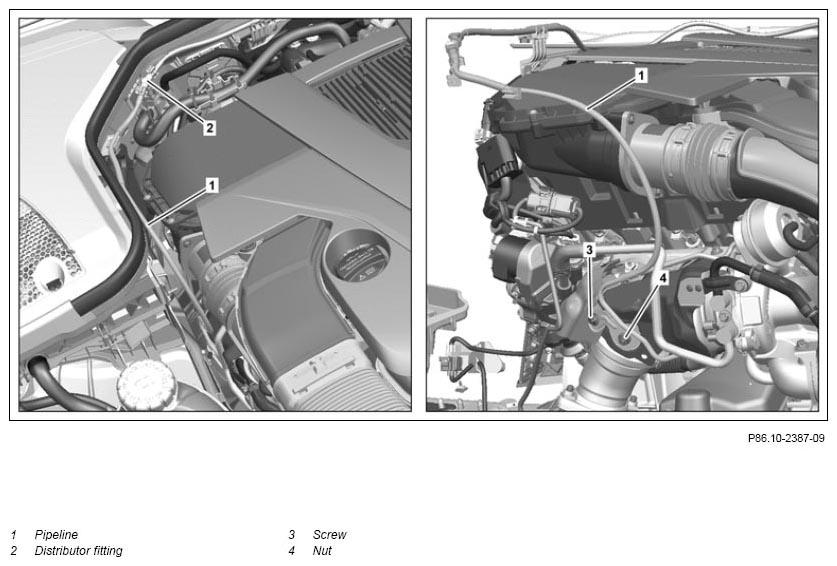

Fig 1: Engine Compartment Right Inertization System Line Remove/Install Components - Shown On Engine 276

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove right air filter housing	Model 205, 213, 238, 253 with engine 177, 274, 276 with code 2U8 (Alternative refrigerant)
		Model 205, 213, 253 with engine 274.9 with code 2U8 (Alternative refrigerant)	AR09.10-P-1150MRA
2	Unscrew bolt (3) and nut (4)	Nut/screw/bolt, pipe for inerting to engine	*BA86.10-P-1002-03E
3	Remove pipe (1) from distributor (2)	Replace clamp on pipe (1).
4	Loosen pipe (1) from retaining clips and remove
	Check
5	Check pipe (1) for damage and plugging	In the event of complaints ↓ Replace pipe (1).
6	Install in the reverse order
