Remove/install left inertization system line in engine compartment - AR86.10-P-0319LWE
MODEL 205, 213, 238, 253 with engine 177, 276
Shown on engine 276

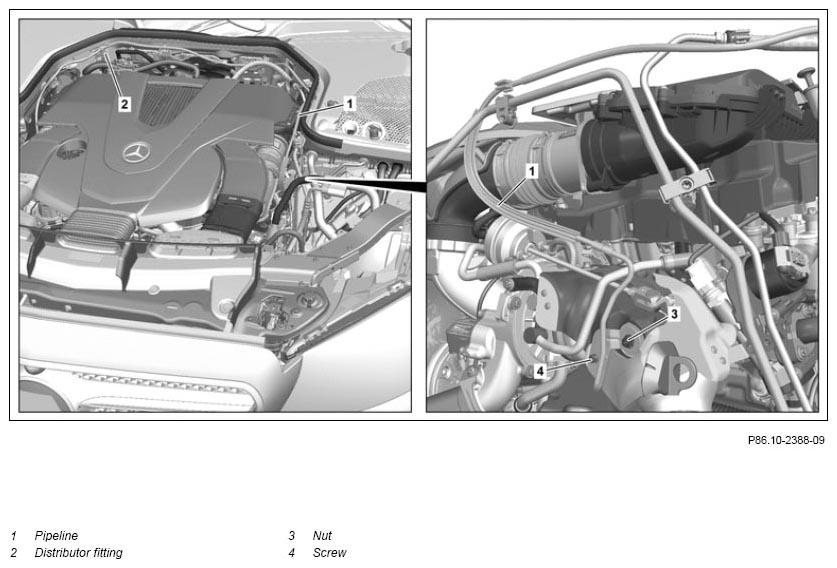

Fig 1: Engine Compartment Left Inertization System Line Remove/Install Components - Shown On Engine 276
| Remove/install | |||
| 1 | Remove left-hand air filter housing | Model 205, 213, 238, 253 with engine 177, 276 | |
| Model 205 with engine 177 with code 2U8 (Alternative refrigerant) |
AR09.10-P-1150MNA | ||
| Model 205, 253 with engine 276.8 with code 2U8 (Alternative refrigerant) |
AR09.10-P-1150MMV | ||
| Model 213, 238 with engine 276.8 with code 2U8 (Alternative refrigerant) |
AR09.10-P-1151MND | ||
| 2 | Unscrew bolt (4) and nut (3) | *BA86.10-P-1002-03E | |
| 3 | Open clamp of pipe (1) and remove pipe (1) from distributor (2) | ||
| 4 | Loosen pipe (1) from retaining clips and remove | ||
| Check | |||
| 5 | Check pipe (1) for damage and plugging | In the event of complaints ↓ Replace pipe (1). |
|
| 6 | Install in the reverse order |
INERTING
| Number | Designation | Model 205 | Model 213 | ||
|---|---|---|---|---|---|
| BA86.10-P-1002-03E | Nut/screw/bolt, pipe for inerting to engine | M6 | Nm | 8 | 8 |
INERTING
| Number | Designation | Model 238 | Model 253 | ||
|---|---|---|---|---|---|
| BA86.10-P-1002-03E | Nut/screw/bolt, pipe for inerting to engine | M6 | Nm | 8 | 8 |
