Remove/install rear engine support - AR22.10-P-4360MNA

ENGINE 177 in MODEL 205

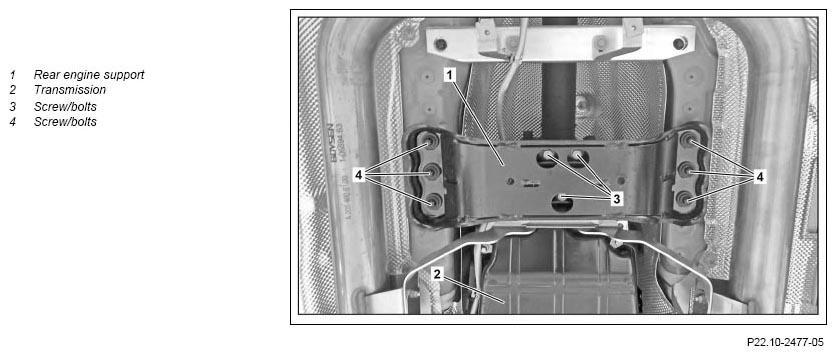

Fig 1: Rear Engine Support Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Remove/install
1	Raise vehicle and secure on vehicle lift		AR00.60-P-1002LWG
2	Remove rear lower engine compartment paneling		AR61.20-P-1105LW
3	Support transmission (2) using major assembly mount and support plate
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
4	Remove screw/bolt (3)	Rear engine mount on engine support	*BA22.10-P-1004-03E
5	Remove screw/bolts (4) and remove rear engine support (1) downwards	Never use an impact wrench/driver or compressed air tools for unscrewing or screwing in the screw/bolts (4)! Otherwise the threads can get damaged. Bolt, rear engine support to frame floor assembly	*BA22.10-P-1005-03E
6	Install in the reverse order

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		Model 205 with engine 177
BA22.10-P-1004-03E	Rear engine mount on engine support	Nm	30

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				Model 205 with engine 177
BA22.10-P-1005-03E	Bolt, rear engine support to frame floor assembly	M10x22	silver	Nm	70
			Black	Nm	-
		M10x24	Black	Nm	50
		M10x38		Nm	-
