Remove/install rear engine mount - AR22.10-P-1160MNA

ENGINE 177 in MODEL 205

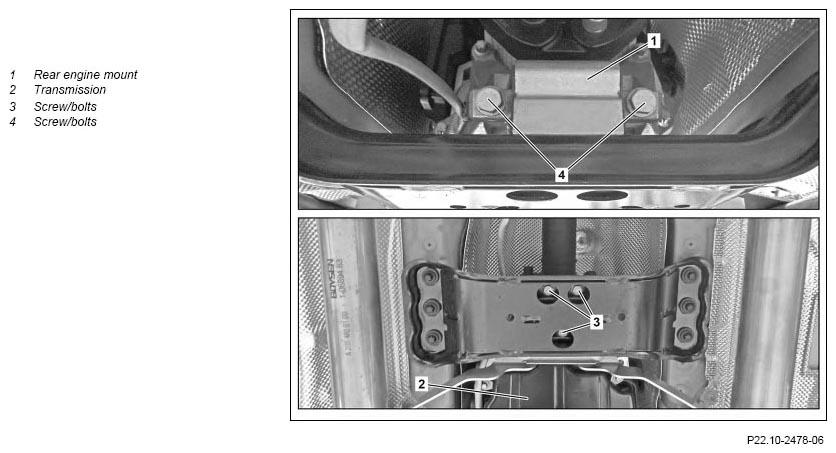

Fig 1: Rear Engine Mount Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Raise vehicle and secure on vehicle lift		AR00.60-P-1002LWG
2	Remove rear lower engine compartment paneling		AR61.20-P-1105LW
3	Only raise transmission (2) with major assembly mount and mounting plate until the rear engine mount (1) is relieved
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
4	Remove screw/bolt (3)	Rear engine mount on engine support	*BA22.10-P-1004-03E
5	Remove screw/bolts (4)	Bolt connecting rear engine mount to bracket or transmission	*BA22.10-P-1003-03E
6	Remove rear engine mount (1) to the rear
7	Install in the reverse order

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			Model 205 with engine 177
BA22.10-P-1003-03E	Bolt connecting rear engine mount to bracket or transmission	M8	Nm	30
		M10	Nm	50

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		Model 205 with engine 177
BA22.10-P-1004-03E	Rear engine mount on engine support	Nm	30
