Remove/install front engine mount - AR22.10-P-4330MNA

ENGINE 177 in MODEL 205

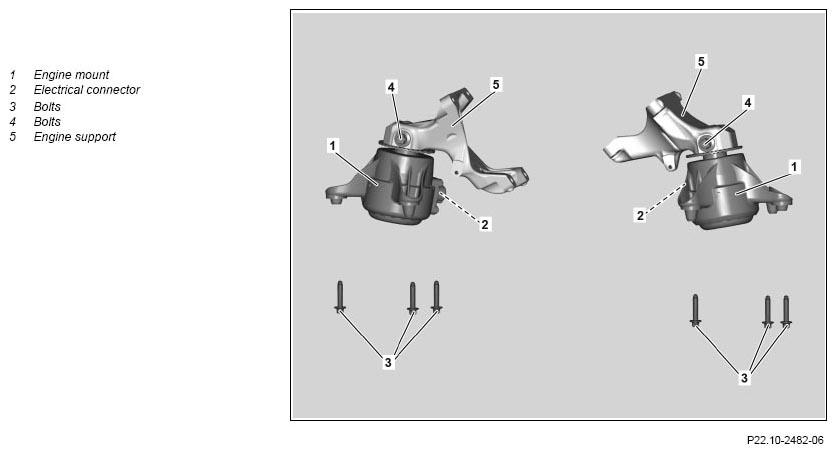

Fig 1: Front Engine Mount Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Remove/install
1	Attach engine hoist and raise engine until the engine mount (1) is not under tension		AR33.10-P-0105LW
2	Detach steering coupling from steering gear	When removing left-hand engine mount (1)	AR46.10-P-8000LW
3	Disconnect electrical connections (2) on engine mounts (1)	Engine 177 in model 205 with code P71 (AMG DYNAMIC PLUS package)
4	Remove engine mount (1) screw/bolts (3) at front axle carrier	Bolt, front engine mount to front axle carrier	*BA22.10-P-1002-03E
5	Remove screw/bolts (4) for engine mount (1) on engine supports (5)	Replace screws/bolts (4). Bolt, front engine mount to engine support	*BA22.10-P-1001-03E
6	Raise engine further	Ensure during lifting that no cables and lines lie on the bulkhead. Damage can occur to cables and lines otherwise.
7	Remove engine mount (1) to the rear	Always replace engine mount (1) in pairs. Pay attention to environmental protection regulations for disposal of engine mounts (1). Dispose engine mounts (1) into mixed scrap.
8	Install in the reverse order

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				Model 205 with engine 177
BA22.10-P-1001-03E	Bolt, front engine mount to engine support	M10		Nm	-
		M12	Stage 1	Nm	45
			Stage 2	∠°	120

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			Model 205 with engine 177
BA22.10-P-1002-03E	Bolt, front engine mount to front axle carrier	M8	Nm	30
