Check low-temperature circuit for leaktightness - AR09.41-P-1011MNA

ENGINE 177 in MODEL 205

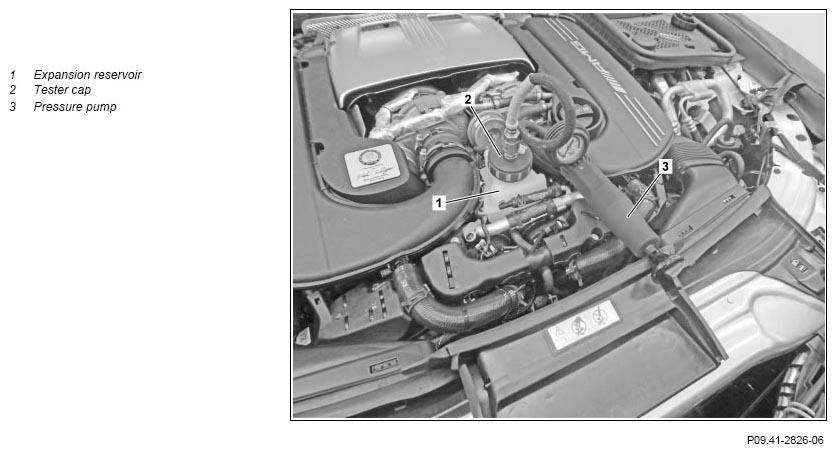

Fig 1: Expansion Reservoir, Tester Cap And Pressure Pump

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Notes on coolant		AH20.00-N-2080-01A
	Remove
1	Unscrew cap on expansion reservoir (1)
	Check
2	Check coolant level and antifreeze content of coolant in low-temperature circuit and correct if necessary	Filling capacity for coolant	*BF20.00-P-1001-02LA
3	Screw tester cap (2) on expansion reservoir (1)	Test cap	Fig 3
4	Connect pressure pump (3) at tester cap (2)	Pressure pump	Fig 2
5	Apply compressed air to low-temperature circuit for 2 minutes at the test pressure	Do not exceed the specified test pressure. The low-temperature circuit may be damaged otherwise. There should be no pressure loss within a period of 2 minutes.
		Test pressure for pressure-testing the low-temperature circuit	*BE20.30-P-1001-01D
6	Perform a visual inspection on the components carrying coolant	In the event of pressure loss: Check condition and coolant loss for all coolant carrying components and connections remove the cause of coolant loss by taking appropriate measures if necessary.
	Install
7	Actuate pressure relief button on pressure pump (3) and relieve the pressure	Pressure pump	Fig 2
8	Unscrew tester cap (2) at the expansion reservoir (1)	Test cap	Fig 3
	Check
9	Check coolant level and antifreeze content coolant	If necessary Filling capacity for coolant	*BF20.00-P-1001-02LA
10	Screw cap onto expansion reservoir (1)

COOLING SYSTEM CHECK VALUES

Number	Designation			Engine 177
BE20.30-P-1001-01D	Test pressure for pressure-testing the low-temperature circuit	Overpressure	bar	1, 4

COOLING SYSTEM

Number	Designation			Engine 177.9 in model 205
BF20.00-P-1001-02LA	Filling capacity for coolant	Main circuit	Liter	≈11, 1
		Low-temperature circuit	Liter	≈4, 6
		Specifications for Operating Fluids, Sheet		Anticorrosion agent/antifreeze (Specification 325.6). See https://bevo.mercedes-benz.com/index.php?language_id=1
		Specifications for Operating Fluids, Sheet		Premixed coolant (Specification 326.6). See https://bevo.mercedes-benz.com/index.php?language_id=1

Fig 2: Identifying Pressure Pump (124 589 24 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Test Cap (210 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
