Remove/install guide tube for oil dipstick - AR18.40-P-3515MNA
ENGINE 177 in MODEL 205
MODIFICATION NOTES
| 25.08.2016 | Screw, shield plate to cylinder head | Motor 177.980 | BA07.02-P-1002-01E |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Detach ground line from battery | AR54.10-P-0003LW | |
| 2 | Remove right air filter housing | AR09.10-P-1150MNA | |
| 3 | Remove insulation of right high-pressure pump | ||

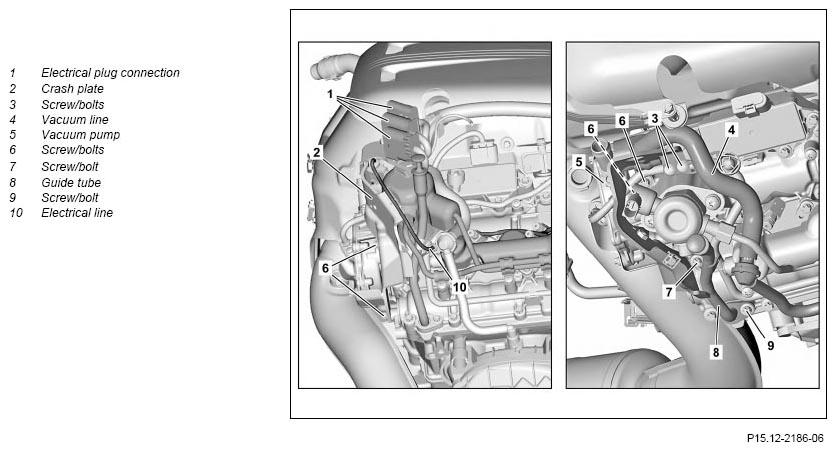

| 4 | Unclip electrical connections (1) on crash plate (2) | ||
| 5 | Remove screw/bolt (3) | *BA43.05-P-1002-01O | |
| 6 | Detach vacuum line (4) from vacuum pump (5) and place to one side | ||
| 7 | Remove screw/bolts (6) and place crash plate (2) to one side | *BA07.02-P-1002-01E | |
| 8 | Remove screw/bolt (7) | *BA01.45-P-1008-01Y | |
| 9 | Unclip electrical line (10) | ||
| 10 | Remove screw/bolt (9) and remove guide tube (8) upwards | *BA01.45-P-1008-01Y | |
| 11 | Install in the reverse order | ||
| Check | |||
| 12 | Check engine oil level and correct if necessary | ||
| AP18.00-P-1848U | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 13 | Perform an engine test run and check engine for leaktightness |
OIL PAN
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA01.45-P-1008-01Y | Bolt, guide tube to cylinder head cover | Nm | 5 |
INJECTION PUMP, HIGH-PRESSURE FUEL PUMP
| Number | Designation | Engine 177.980 | |
|---|---|---|---|
| BA07.02-P-1002-01E | Screw/bolt, shield plate to cylinder head | Nm | 10 |
VACUUM PUMP
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA43.05-P-1002-01O | Screw/bolt, bracket of vacuum line to shield plate of high-pressure pump | Nm | 9 |
