Remove/install fuel injectors - AR07.03-P-0004MNA

ENGINE 176 in MODEL 463

ENGINE 177 in MODEL 205

ENGINE 178 in MODEL 190

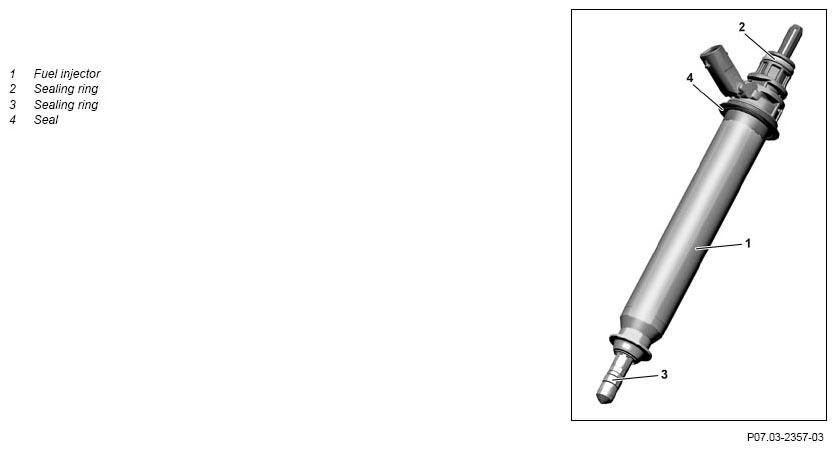

Fig 1: Fuel Injector Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	General information on work on gasoline direct injection system		AH07.00-P-2000-01A
	Remove
1	Remove left rail	When removing the fuel injectors (1) on left cylinder head.
		Engine 178 in model 190	AR07.03-P-1011MNB
		Engine 176 in model 463 Engine 177 in model 205	AR07.03-P-1011MNA
2	Remove right rail	When removing the fuel injectors (1) on right cylinder head. Engine 178 in model 190	AR07.03-P-1012MNB
		Engine 176 in model 463 Engine 177 in model 205	AR07.03-P-1012MNA
3	Remove freed up fuel injectors (1) from the cylinder head	Engine oil which comes out during disassembly of the rail or from the fuel injectors (1) is safe. The rail or the fuel injectors (1) can be re-used. In case of jammed fuel injectors (1). ↓ Remove fuel injectors (1).	AR07.03-P-0004-03MM
		Puller	Fig 3
4	Check removed fuel injectors (1) for external damage	For damage to the stems or to the mounts of the sealing package. ↓ Replace fuel injectors (1).
	Install
5	Read off the injector quantity compensation (IMA) coding on fuel injectors (1) and take a note of it	For installation of new fuel injectors (1).
6	Replace sealing packages for the fuel injectors (1) on rail		AR07.03-P-0004-02MM
		Assembly cleaner	*BR00.45-Z-1028-04A
		Drift	Fig 2
7	Replace sealing rings (2) and seals (4) on the fuel injectors (1) to be installed
8	Replace sealing rings (3) for the fuel injectors (1) to be installed		AR07.03-P-0004-01MM
		The fuel injectors (1) must be installed immediately after calibration of the sealing rings (3) since the sealing rings (3) can swell due to the influence of air humidity. The sealing rings (3) will otherwise be damaged during assembly. Assembly cleaner	*BR00.45-Z-1028-04A
		Assembly tool	Fig 4
9	Attach fuel injectors (1) to be installed to the rail	Replace hold-down tool.
10	Position fuel injectors (1) to be installed together with the rail in cylinder head	The fuel injectors (1 must always be installed together with the rail.
11	Install left rail	When installing the fuel injectors (1) on left cylinder head. Engine 178 in model 190	AR07.03-P-1011MNB
		Engine 176 in model 463 Engine 177 in model 205	AR07.03-P-1011MNA
12	Install right rail	When installing the fuel injectors (1) on the right cylinder head. Engine 178 in model 190	AR07.03-P-1012MNB
		Engine 176 in model 463 Engine 177 in model 205	AR07.03-P-1012MNA
13	Store injector quantity compensation (IMA) coding in ME-SFI [ME] control unit	For installation of new fuel injectors (1).
		Engine 176 in model 463	AD00.00-P-2000-04A
		Engine 177 in model 205 Engine 178 in model 190	AD00.00-P-2000-04B
14	Read out fault memory using the diagnostic system and clear if necessary
		Engine 176 in model 463	AD00.00-P-2000-04A
		Engine 177 in model 205 Engine 178 in model 190	AD00.00-P-2000-04B
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
15	Carry out engine test run, checking the engine for proper operation and leaktightness of the fuel system

Fig 2: Identifying Drift (278 589 01 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Puller (278 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Assembly Tool (272 589 00 43 00)

Courtesy of MERCEDES-BENZ USA
