Remove/install boost pressure control pressure transducer - AR09.41-P-2004MNA
ENGINE 176 in MODEL 463
ENGINE 177 in MODEL 205
Shown on ENGINE 177
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove engine compartment paneling | Engine 176 in model 463 as of model year 2016 except code ZQ0 (G 500 4x42 ) | AR61.20-P-1105GW |
| Engine 177 in model 205 | AR61.20-P-1105LW | ||
| 2 | Detach oil lines on crankcase and catch escaping engine oil in a suitable container | Engine 176 in model 463 | |
| *BA18.30-P-1009-01N | |||

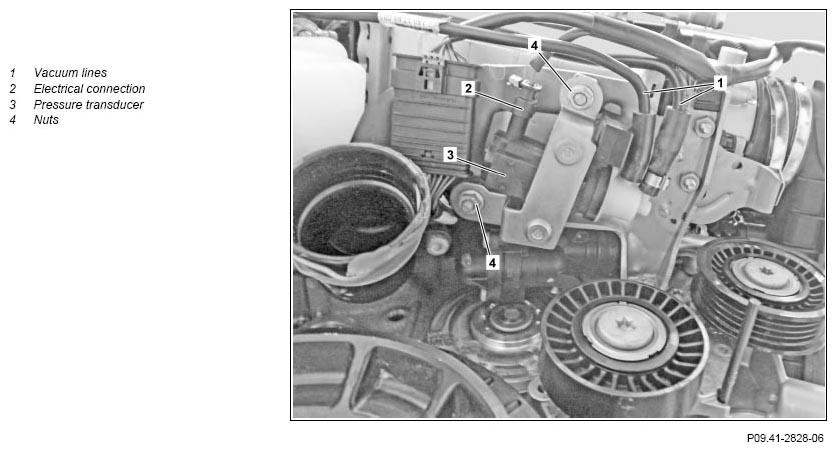

| 3 | Detach vacuum lines (1) | ||
| 4 | Unscrew nuts (4) and remove pressure transducer (3) | ||
| 5 | Disconnect electrical connection (2) | ||
| 6 | Remove holder on pressure transducer (3) | When replacing the pressure transducer (3). | |
| 7 | Install in the reverse order | ||
| 8 | Check engine oil level; correct if necessary | Engine 176 in model 463 | |
| AP18.00-P-0101GE | |||
| 9 | Read out fault memory using the diagnostic system and clear if necessary | ||
| Engine 176 in model 463 | AD00.00-P-2000-04A | ||
| Engine 177 in model 205 | AD00.00-P-2000-04B | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | ||
| 10 | Perform an engine test run and check engine for proper operation and leaktightness |
OIL COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA18.30-P-1009-01N | Bolt, oil line to engine | Nm | 8 |
