Remove/install fanfare horns - AR54.35-P-1555LWA
MODEL 205 with ENGINE 177
| Remove/install | |||
| 1 | Remove front bumper | AR88.20-P-2000LW | |

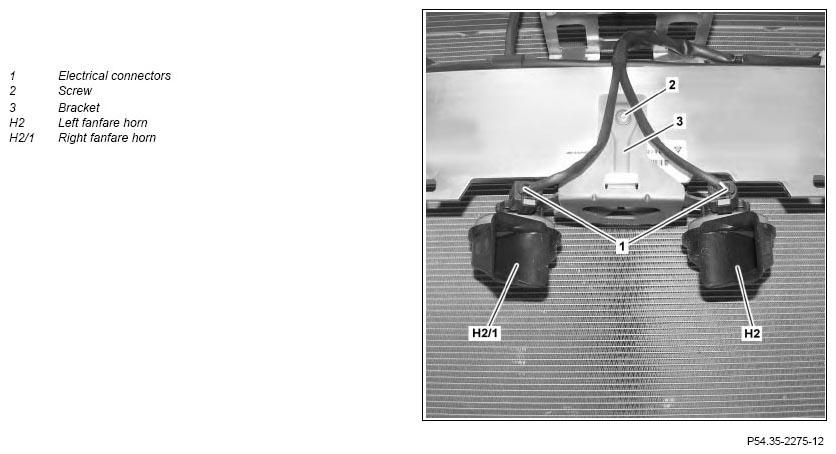

| 2 | Separate electrical connections (1) | ||
| 3 | Unscrew screw/bolt (2) and remove left horn (H2) and right horn (H2/1) with bracket (3) | ||
| 4 | Detach left horn (H2) and right horn (H21) from bracket (3) | When replacing the left horn (H2) or the right horn (H2/1). | |
| 5 | Install in the reverse order |
