Remove/install Parktronic system (PTS) sensors in front bumper - AR54.65-P-0001LW
MODEL 205 with CODE 235 (Active Parking Assist)
Shown on MODEL 205 except CODE 772 (AMG styling package - front spoiler, side skirts and rear apron) and except CODE 773 (AMG carbon exterior package) and except CODE P90 (AMG exterior)

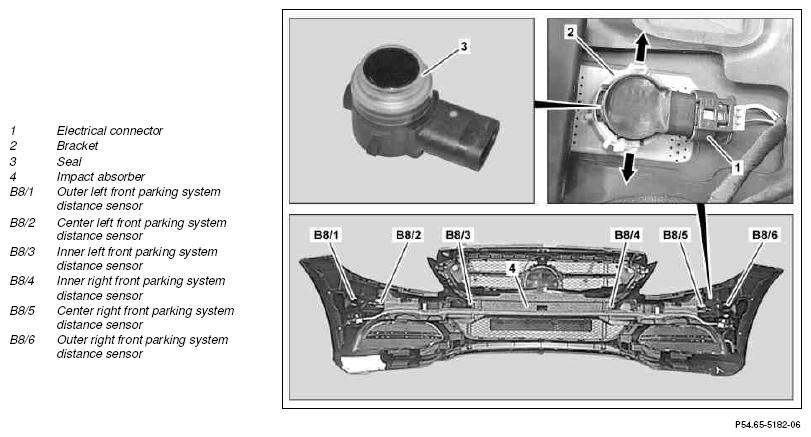

Fig 1: Front Bumper Parktronic System Sensors Remove/Install Components - Shown On Model 205 Except Code 772
MODEL 205 with CODE 772 (AMG styling package - front spoiler, side skirts and rear apron) or with CODE 773 (AMG carbon exterior package) or with CODE P90 (AMG exterior), shown on MODEL 205.087 with CODE 773 (AMG carbon exterior package)

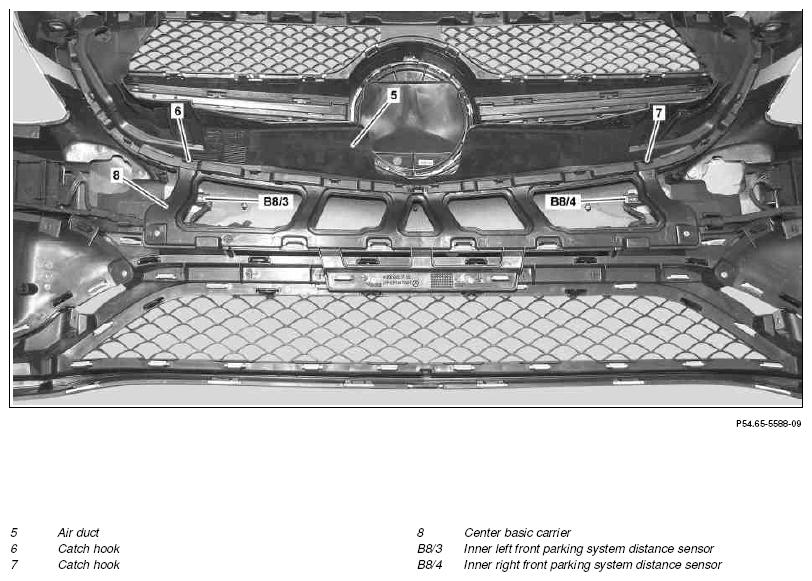

Fig 2: Front Bumper Parktronic System Sensors Remove/Install Components - Shown On Model 205 With Code 772
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove front bumper | AR88.20-P-2000LW | |
| 2.1 | Remove impact absorber (4) | MODEL 205 with CODE 235 (Active Parking Assist) without CODE U60 (Active Bonnet (Pedestrian protection)) When removing the front parking system distance sensors (B8/2, B8/3, B8/4 and B8/5). |
|
| General information on the impact absorber | AH88.20-P-1000-01A | ||
| 2.2 | Detach impact absorber (4) and place to one side with lines still connected | MODEL 205 with CODE 235 (Active Parking Assist) with CODE U60 (Active Bonnet (Pedestrian protection)) When removing the front parking system distance sensors (B8/2, B8/3, B8/4 and B8/5). |
|
| General information on the impact absorber | AH88.20-P-1000-01A | ||
| Notes on pedestrian protection sensor | AH91.60-P-0001-01A | ||
| 3 | Unclip air deflector (5) and remove | MODEL 205 with CODE 235 (Active Parking Assist) with CODE 772 (AMG styling package - front spoiler, side skirts and rear apron) MODEL 205 with CODE 235 (Active Parking Assist) with CODE 773 (AMG exterior carbon trim package) MODEL 205 with CODE 235 (Active Parking Assist) with CODE P90 (AMG exterior) |
|
| 4 | Unclip catch hook (6) or catch hook (7) and lift center basic carrier (8) until inner left front parking system distance sensor (B8/3) or inner right front parking system distance sensor (B8/4) is accessible | MODEL 205 with CODE 235 (Active Parking Assist) with CODE 772 (AMG styling package - front spoiler, side skirts and rear apron) MODEL 205 with CODE 235 (Active Parking Assist) with CODE 773 (AMG exterior carbon trim package) MODEL 205 with CODE 235 (Active Parking Assist) with CODE P90 (AMG exterior) When removing the front parking system distance sensors (B8/3 and B8/4). |
|
| 5 | Disconnect electrical connector (1) from affected front parking system distance sensor (B8/1, B8/2, B8/3, B8/4, B8/5, B8/6) | ||
| 6 | Unlock catch hook of bracket concerned (2) in direction of arrow and take front parking system distance sensor (B8/1, B8/2, B8/3, B8/4, B8/5 or B8/6) out of bracket (2) | If there are problems: ↓ Install new seal (3). |
|
| 7 | Install in the reverse order |
