Retrofit COMAND Online incl. DVD changer - AN82.85-P-0008LWA

MODEL 205.0/2 with CODE 531 (COMAND APS) with CODE 815 (DVD player) without CODE 460 (Canada version) without CODE 494 (USA version) without CODE 498 (Japanese version) without CODE 520 (Audio 20 USB) without CODE 522 (Audio 20 CD with touchpad) without CODE 830 (China version)

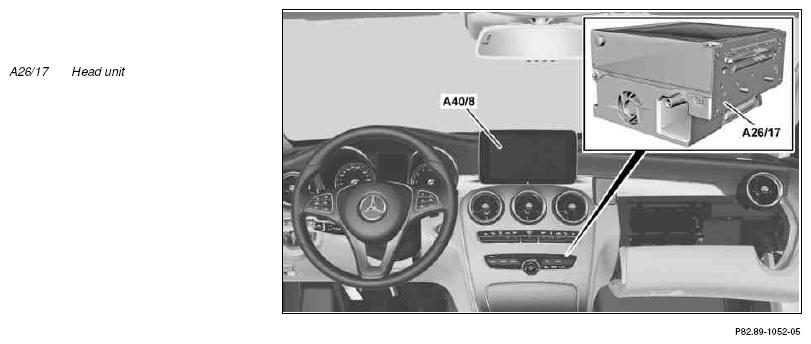

Fig 1: Identifying Head Unit

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove COMAND Online with DVD player head unit (A26/17)
			AR82.85-P-1100LW
		COMAND Online with DVD player head unit (A26/17) is no longer required.
2	Remove upper control panel control unit.
			AR54.21-P-1262LW
		The upper control panel control unit is no longer required.
	Install
3	Install COMAND Online with DVD player head unit (A26/17)
			AR82.85-P-1100LW
4	Install new upper control panel control unit
			AR54.21-P-1262LW
5	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Delete:  CODE 815 (DVD player) Add:  CODE 814 (DVD changer)
6	Document retrofitted equipment through VeDoc	Attach note "COMAND Online with DVD changer retrofitted as per AN82.85-P-0008LWA" under field organization texts to design group 82.
7	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04B
8	Perform variant coding with XENTRY using the software calibration number (SCN)	Variant coding must be carried out with XENTRY using the SCN for the following control unit: "Head unit"
9	Disconnect diagnostic system
			AD00.00-P-2000-04B
	Check
10	Perform function test	See operator's manual for COMAND Online with DVD changer.
