Retrofit COMAND Online incl. DVD changer - AN82.85-P-0008CLW

MODEL 205.3

with CODE 3U1 (Head unit ECE/ROW)

with CODE 531 (COMAND APS)

with CODE 815 (Single DVD drive)

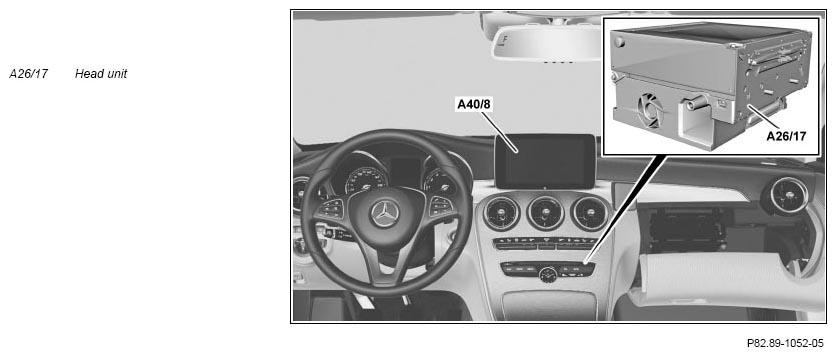

Fig 1: Identifying Head Unit

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove COMAND Online with DVD player head unit (A26/17)
		The head unit (A26/17) COMAND Online incl. DVD player is no longer required.	AR82.85-P-1100LW
2	Remove upper control panel control unit
		The upper control panel control unit is no longer required.	AR54.21-P-1262LW
	Install
3	Install new upper control panel control unit
			AR54.21-P-1262LW
4	Install COMAND Online with DVD player head unit (A26/17)
			AR82.85-P-1100LW
	Update Vehicle Documentation (VeDoc)
5	Delete special equipment in online vehicle data card	Code 815 (DVD player)
6	Enter special equipment in online vehicle data card	CODE 814 (DVD changer)
7	Attach note "COMAND Online with DVD changer retrofitted as per AN82.85-P-0008CLW" under field organization texts to design group 82
8	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04B
9	Carry out variant coding using software calibration number (SCN)	Electronic ignition lock control unit and head unit.
10	Disconnect diagnostic system
			AD00.00-P-2000-04B
	Check
11	Perform function test	See Owner's Manual.
