Remove/install windshield washer hose - AR82.35-P-6980LW
MODEL 205

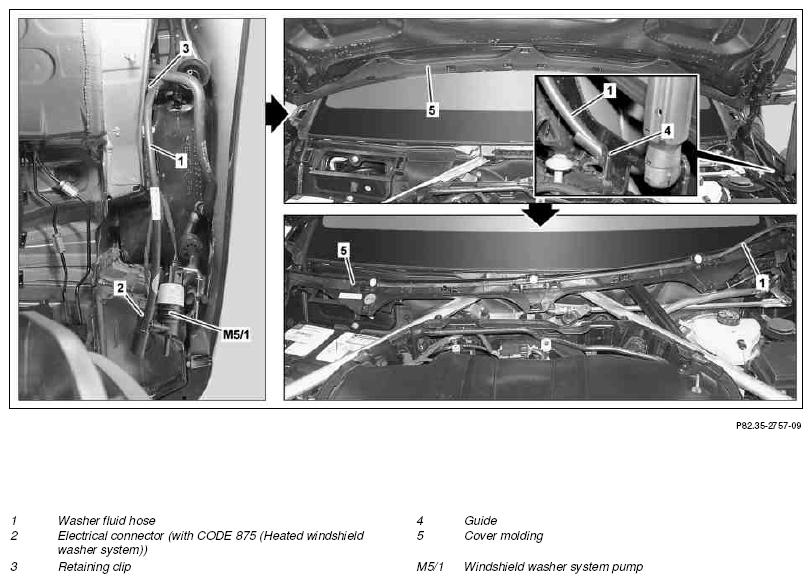

Shown on vehicle with CODE 875 (Heated windshield washer system)
| Remove/install | |||
| 1 | Remove windshield washer fluid reservoir | AR82.35-P-6000LW | |
with CODE 875 (Heated windscreen washer system) Do not remove heat exchanger. |
|||
| 2 | Detach washer fluid hose (1) at windshield washer system pump (M5/1) | ||
| 3 | Disconnect electrical connection (2) | MODEL 205 with CODE 875 (Heated windscreen washer system) |
|
| 4 | Unclip washer fluid hose (1) from retaining clip (3) | ||
| 5 | Unclip guide (4) at fender and remove washer fluid hose (1) upwards out of wheel well | ||
| 6 | Unclip cover panel (5) at engine hood | ||
| 7 | Remove washer fluid hose (1) with spray nozzles from cover panel (5) and take off | ||
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Check setting of spray nozzles | ||
| AP82.30-P-8252CAA |
