Remove/install tuner unit - AR82.60-P-2002LW
MODEL 205.0/2 with CODE 536 (SIRIUS satellite radio)
MODEL 205.0/2 with CODE 537 (Digital radio (DAB))
MODEL 205.0/2 with CODE 865 (TV tuner)
Shown on model 205.0
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||

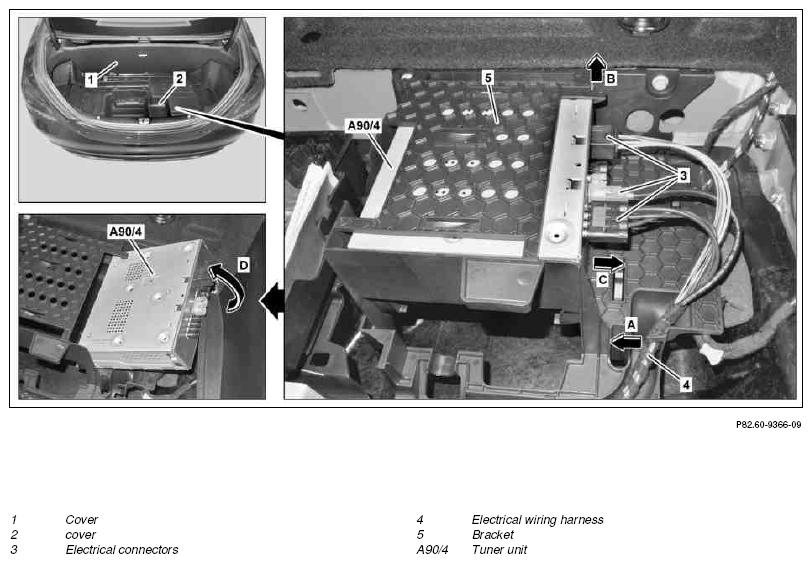

| 1 | Carry out initial startup of tuner unit (A90/4) | When replacing tuner unit (A90/4). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and remove transmitter key | ||
| 3 | Lift cover (1) and remove | ||
| 4 | Remove cover (2) | ||
| 5 | Disconnect electrical connectors (3) | ||
| 6 | Unhook electric wiring harness (4) (arrow A) | ||
| 7 | Lift catch hook at bracket (5) (arrow B) and push tuner unit (A90/4) out of bracket (5) (arrow C) | ||
| 8 | Swivel tuner unit (A90/4) upward (arrow D) and remove | ||
| 9 | Install in the reverse order |
