Remove/install telematics services communications module control unit - AR82.85-P-0020LWH
MODEL 205.0/2 with CODE 350 (Ecall emergency call system, Europe) with CODE ME06 (Hybrid drive 50-KW variant (incl. plugin))
MODEL 205.0/2 with CODE B54 (Live Traffic Information) with CODE ME06 (Hybrid drive 50-KW variant (incl. plugin))
MODEL 205.0/2 with CODE B57 (KOM Module battery charging) with CODE ME06 (Hybrid drive 50-KW variant (incl. plugin))
Shown on MODEL 205.2 except CODE 550 (Trailer hitch)

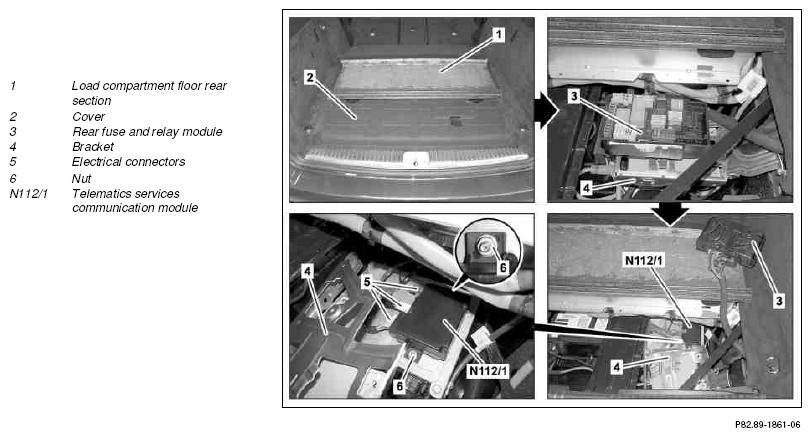

Fig 1: Telematics Services Communications Module Control Unit Remove/Install Components - Shown On Model 205.2
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Note on high-voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of telematics services communications module (N112/1) | When replacing telematics services communications module (N112/1). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and remove transmitter key | ||
| 3.1 | Remove load compartment floor rear section (1) | MODEL 205.0 with CODE 350 (Ecall emergency call system, Europe) with CODE ME06 (Hybrid drive 50-KW variant (incl. plugin)) MODEL 205.0 with CODE B54 (Live Traffic Information) with CODE ME06 (Hybrid drive 50-KW variant (incl. plugin)) MODEL 205.0 with CODE B57 (KOM Module battery charging) with CODE ME06 (Hybrid drive 50-KW variant (incl. plugin)) |
|
| 3.2 | Fold down load compartment floor rear section (1) | MODEL 205.2 with CODE 350 (Ecall emergency call system, Europe) with CODE ME06 (Hybrid drive 50-KW variant (incl. plugin)) MODEL 205.2 with CODE B54 (Live Traffic Information) with CODE ME06 (Hybrid drive 50-KW variant (incl. plugin)) MODEL 205.2 with CODE B57 (KOM Module battery charging) with CODE ME06 (Hybrid drive 50-KW variant (incl. plugin)) |
|
| 4 | Remove cover (2) | ||
| 5 | Remove rear fuse and relay module (3) from bracket (4) and place to one side with electrical lines connected | ||
| 6 | Remove trailer recognition control unit from bracket (4) and place to one side with electrical lines connected | MODEL 205.0/2 with CODE 350 (Ecall emergency call system, Europe) with CODE 550 (Trailer coupling) with CODE ME06 (Hybrid drive 50-KW variant (incl. plugin)) MODEL 205.0/2 with CODE 550 (Trailer coupling) with CODE B54 (Live Traffic Information) with CODE ME06 (Hybrid drive 50-KW variant (incl. plugin)) MODEL 205.0/2 with CODE 550 (Trailer coupling) with CODE B57 (KOM Module battery charging) with CODE ME06 (Hybrid drive 50-KW variant (incl. plugin)) |
|
| 7 | Remove bracket (4) and place to one side, as shown | ||
| 8 | Release and disconnect electrical connectors (5) | ||
| 9 | Unscrew nuts (6) | ||
| 10 | Remove telematics services communications module (N112/1) | ||
| 11 | Install in the reverse order |
