Remove/install speaker in soft top compartment lid - AR82.62-P-7843LCA
MODEL 205.4
MODEL 217.4
Shown on model 217.4 except code 811 (Advanced sound system)

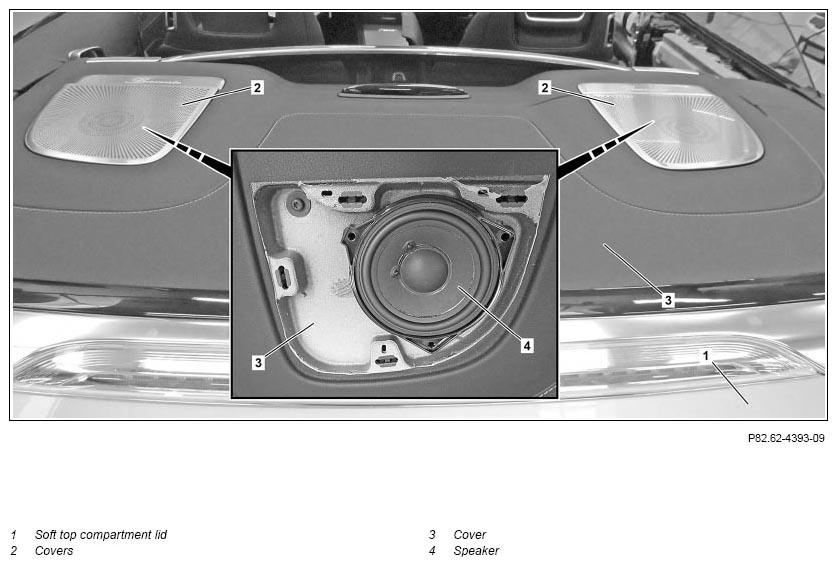

Fig 1: Soft Top Compartment Lid Speaker Remove/Install Components - Shown On Model 217.4 Except Code 811
| Remove/install | |||
| 1 | Completely open soft top | ||
| 2 | Unclip cover (2) | Fig 2 | |
| 3 | Unclip speaker (4) from the cover (3) and remove | with code 811 (Advanced sound system) In addition, unclip the tweeter and remove. |
|
| 4 | Disconnect electrical connector from speaker (4) | with code 811 (Advanced sound system) In addition, disconnect the electrical connector from the tweeter. |
|
| 5 | Install in the reverse order |
