Remove/install satellite radio antenna - AR82.60-P-7547LWR
MODEL 205.4
with CODE 536 (SIRIUS satellite radio)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

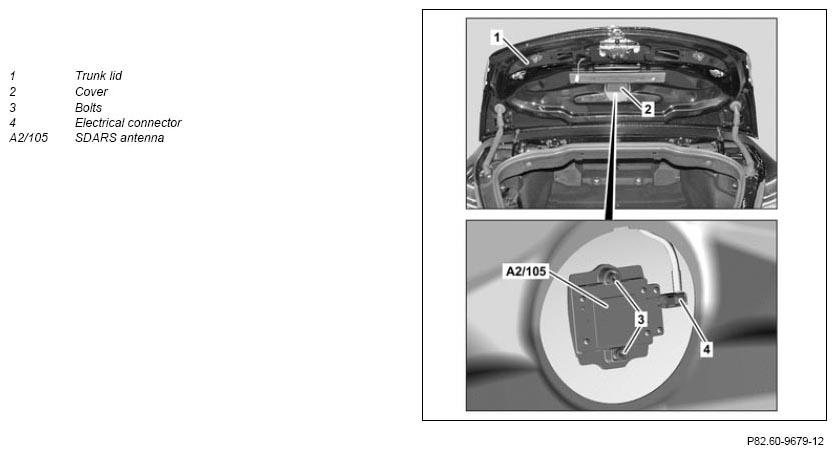

| 1 | Open trunk lid (1) and remove cover (2) | ||
| 2 | Remove bolts (3) | ||
| 3 | Remove SDARS antenna (A2/105) and disconnect electrical connector (4) | ||
| 4 | Install in the reverse order |
