Remove/install radio, central locking and KEYLESS-GO antenna amplifier - AR82.62-P-8307LWR
MODEL 205.4
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove left A-pillar trim | AR68.30-P-4050LW | |

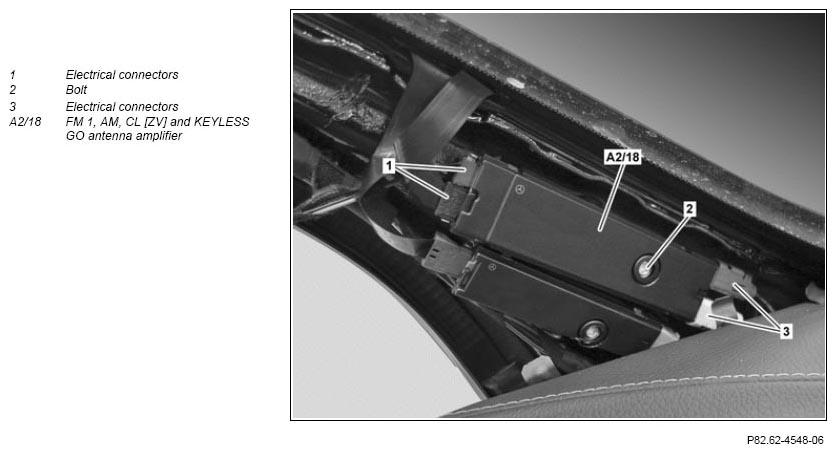

| 2 | Separate electrical connections (1) | ||
| 3 | Unscrew bolt (2) | ||
| 4 | Unclip FM 1, AM, CL and KEYLESS-GO antenna amplifier (A2/18) from A-pillar | ||
| 5 | Disconnect electrical connectors (3) and remove FM 1, AM, CL and KEYLESS-GO antenna amplifier (A2/18) | ||
| 6 | Install in the reverse order |
