Remove/install left/right rear window antenna amplifier - AR82.62-P-8382LW
MODEL 205.0/1

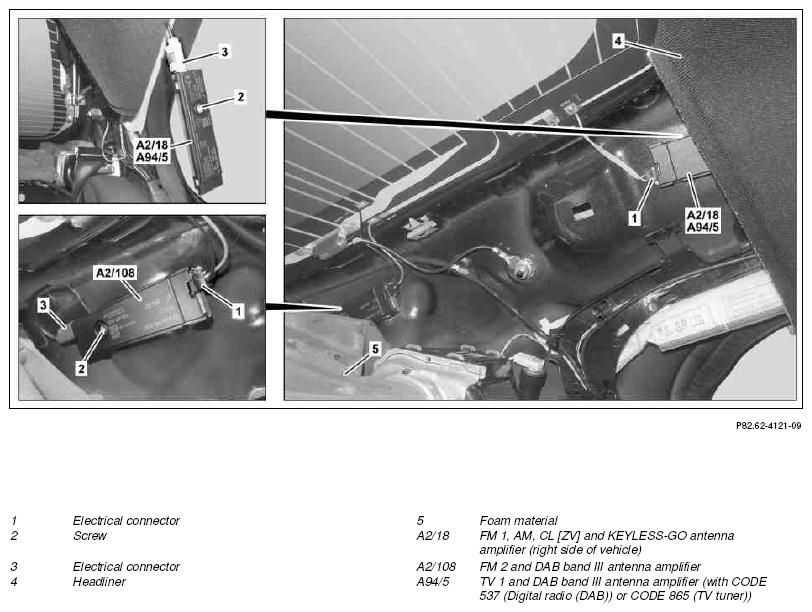

Shown on left side of vehicle
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove trim from C-pillar | AR68.30-P-4490LW | |
| 2 | Remove rear shelf | When removing FM 2 and DAB band III antenna amplifier (A2/108). | |
| AR68.30-P-4581LW | |||
| 3 | Disconnect electrical connector (1) | ||
| 4.1 | Press headliner (4) to one side | When removing FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier (A2/18) or TV 1 and DAB band III antenna amplifier (A94/5). |
|
| 4.2 | Fold foam material (5) to one side | When removing FM 2 and DAB band III antenna amplifier (A2/108). | |
| 5 | Unscrew bolt (2) | ||
| 6 | Unclip FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier (A2/18) or FM 2 and DAB band III antenna amplifier (A2/108) or TV 1 and DAB band III antenna amplifier (A94/5) at body and pull out until electrical connector (3) is accessible | ||
| 7 | Disconnect electrical connector (3) and remove FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier (A2/18) or FM 2 and DAB band III antenna amplifier (A2/108) or TV 1 and DAB band III antenna amplifier (A94/5) | ||
| 8 | Install in the reverse order |
