Remove/install driver-side footwell woofer - AR82.62-P-7822LWE

MODEL 205

with CODE 810 (Sound system)

MODEL 213

with code 810 (Sound system)

MODEL 213

with CODE 811 (Advanced sound system)

MODEL 253

witH CODE 810 (Sound system)

Shown on model 205

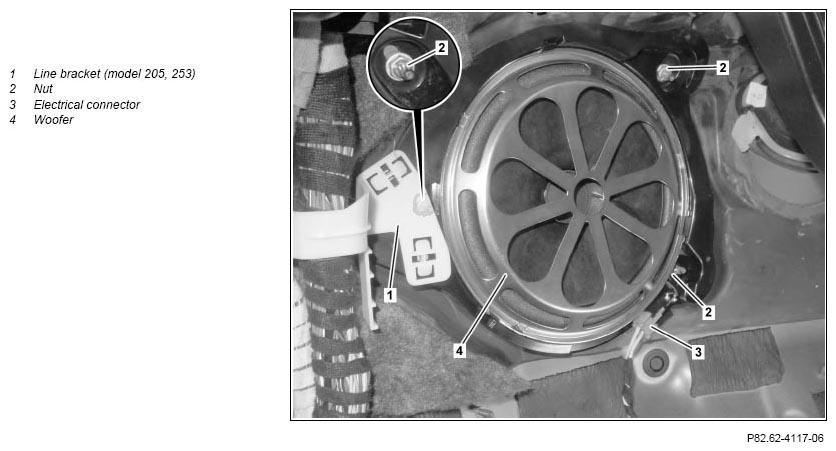

Fig 1: Driver-Side Footwell Woofer Remove/Install Components - Shown On Model 205

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove cover under the instrument panel on the driver-side	Model 205, 253 with code 810 (Sound system)	AR68.10-P-1500LW
		Model 213 with code 810 (Sound system) Model 213 with code 811 (Advanced sound system)	AR68.10-P-1501LWE
2	Remove front floor covering on driver side	Model 205, 253 with code 810 (Sound system)	AR68.20-P-2050LW
		Model 213 with code 810 (Sound system) Model 213 with code 811 (Advanced sound system)	AR68.20-P-2060LWE
3	Unclip line bracket (1)	Model 205, 253 with code 810 (Sound system)
4	Disconnect electrical connector (3)
5	Unscrew nuts (2)
6	Remove woofer (4)
7	Install in the reverse order
