Remove/install communications module/stationary heater antenna - AR82.62-P-0002LW
MODEL 205.0/1 with CODE 350 (Ecall emergency call system, Europe, gen. 3)
MODEL 205.0 with CODE B24 (remote control for auxiliary heater)
MODEL 205.0 with CODE B54 (Live Traffic Information)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove rear shelf | AR68.30-P-4581LW | |

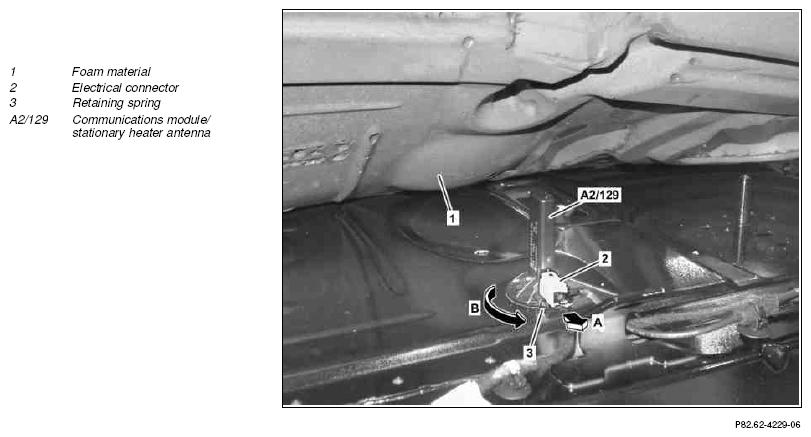

| 2 | Lift foam material (1) in center | ||
| 3 | Disconnect electrical connection (2) | ||
| 4 | Lift safety spring (3) and pull communications module/stationary heater antenna (A2/129) forward as far as it will go (arrow A) | ||
| 5 | Turn communications module/stationary heater antenna (A2/129) by 90° counterclockwise (arrow B) and remove | ||
| 6 | Install in the reverse order |
