Remove/install antenna splitter - AR82.70-P-8953LWR

MODEL 205.4

with CODE 537 (Digital radio (DAB))

with CODE 865 (TV tuner)

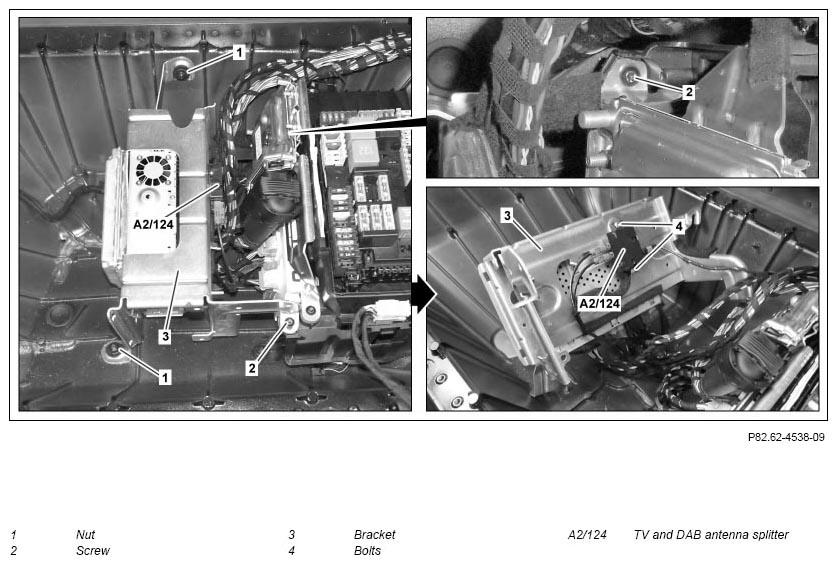

Fig 1: Antenna Splitter Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
2	Remove rear cargo area floor
3	Remove trunk recess cover
4	Unscrew nuts (1), remove screws/bolts (2) and lay bracket (3) to one side with the control units attached	The electrical connectors of the control units need not be disconnected.
5	Remove bolts (4)
6	Remove TV and DAB antenna splitter (A2/124) and disconnect its electrical connectors	The electrical connectors are color-coded.
7	Install in the reverse order
