Remove/install TV and DAB antenna amplifier - AR82.62-P-8312LWR
MODEL 205.4
with CODE 537 (Digital radio (DAB))
MODEL 205.4
with CODE 865 (TV tuner)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove A-pillar paneling | AR68.30-P-4050LW | |

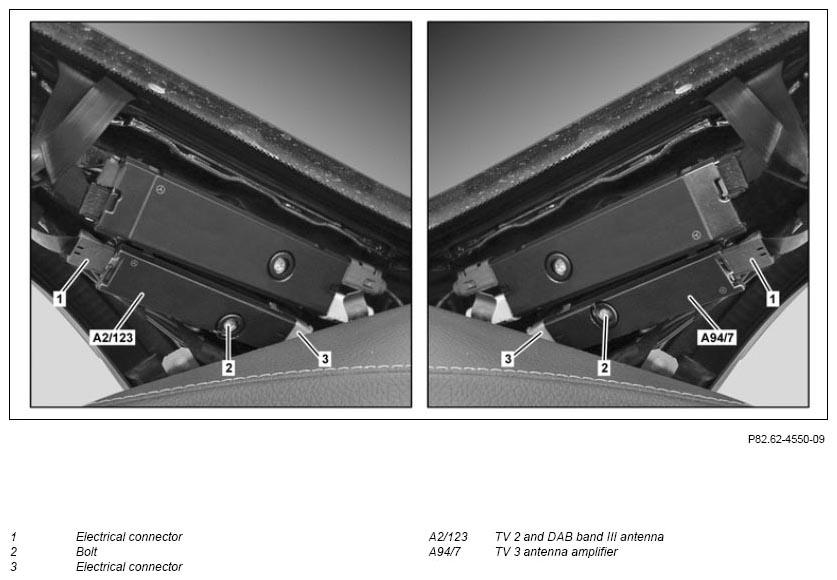

| 2 | Disconnect electrical connection (1) | ||
| 3 | Unscrew bolt (2) | ||
| 4 | Unclip the TV 2 and DAB Band III antenna amplifier (A2/123) or the TV 3 antenna amplifier (A94/7) from the A-pillar | ||
| 5 | Disconnect electrical connector (3) and remove TV 2 and DAB Band III antenna amplifier (A2/123) or TV 3 antenna amplifier (A94/7) | ||
| 6 | Install in the reverse order |
