Remove/install FM 2, DAB and TV 1 antenna amplifier - AR82.62-P-8311LWR

MODEL 205.4

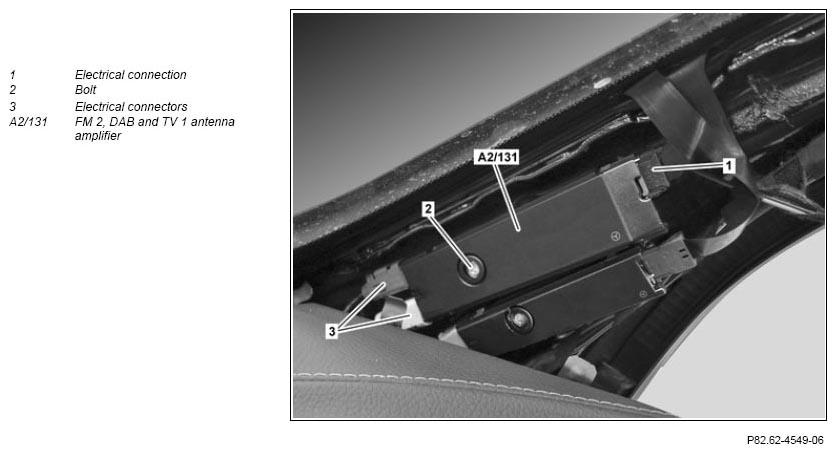

Fig 1: FM 2, DAB And TV 1 Antenna Amplifier Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove right A-pillar paneling		AR68.30-P-4050LW
2	Disconnect electrical connection (1)
3	Unscrew bolt (2)	The screw/bolt (2) remains on the FM 2, DAB and TV 1 antenna amplifier (A2/131).
4	Unclip FM 2, DAB and TV 1 antenna amplifier (A2/131) from A-pillar
5	Disconnect electrical connectors (3) and remove FM 2, DAB and TV 1 antenna amplifier (A2/131)	The number of electrical connectors (3) may vary depending on the vehicle equipment involved.
6	Install in the reverse order
