Cavity preservation following repair work - AR97.20-P-1500LW

MODEL 205

MODEL 253

Variants of cavity preservation

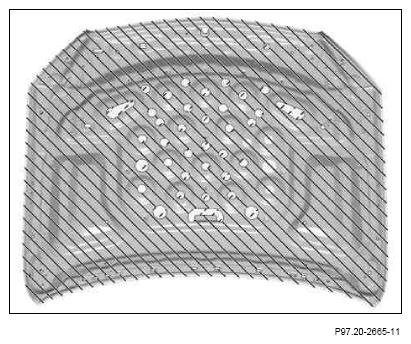

Engine hood, shown on model 205.0

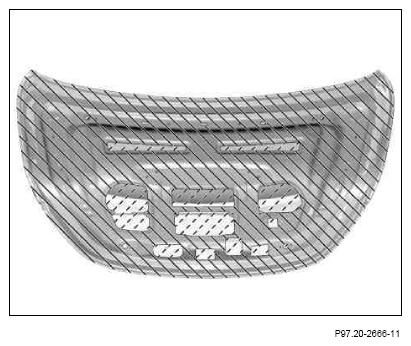

Trunk lid, MODEL 205.0/1

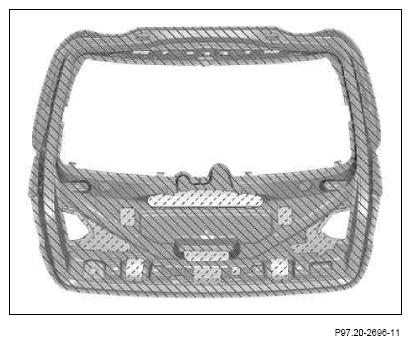

Liftgate, shown on MODEL 205.2

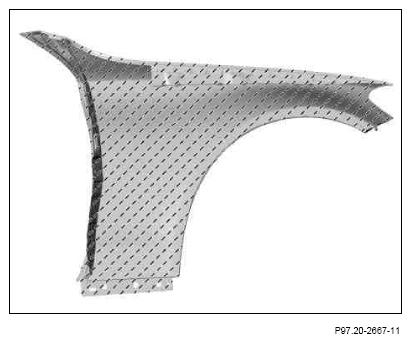

Front fender, shown on MODEL 205.0

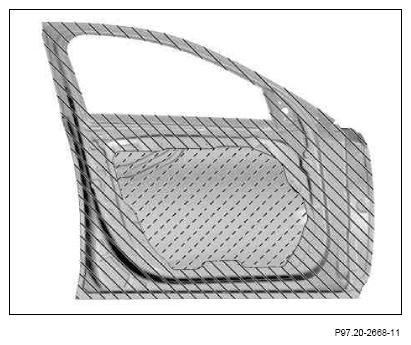

Front door, shown on MODEL 205.0

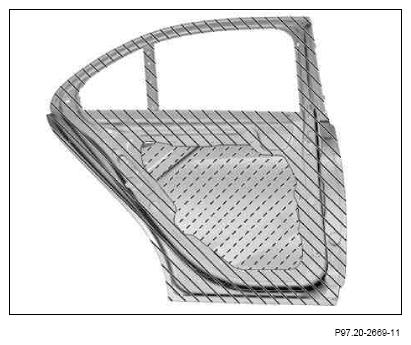

Rear door, shown on MODEL 205.0

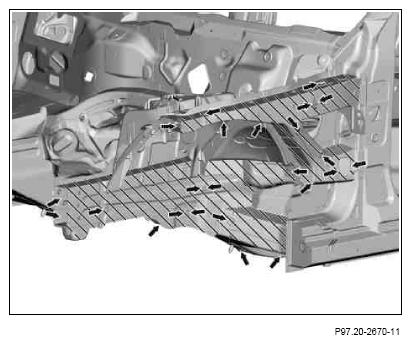

Front longitudinal member, shown on model 205.0

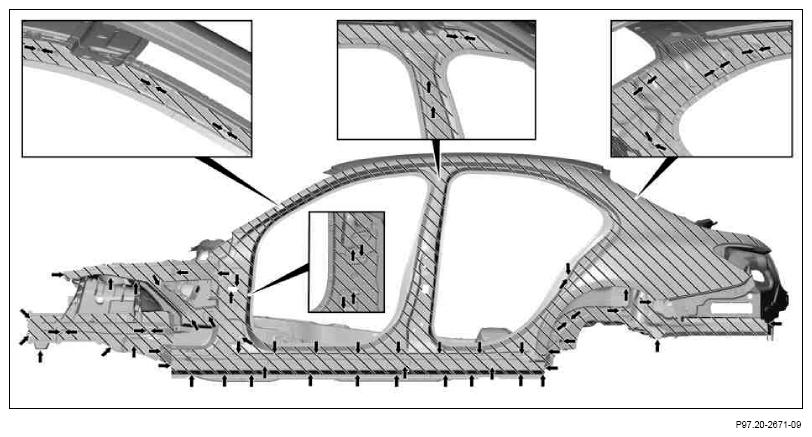

Upper front longitudinal member, A-pillar, B-pillar, C-pillar, side wall paneling and bottom side longitudinal member, shown on MODEL 205.0

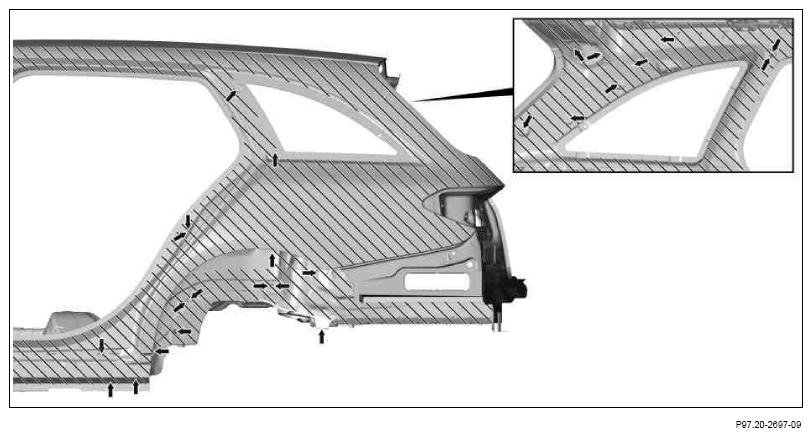

C-pillar, D-pillar, side wall paneling and bottom side longitudinal member, shown on MODEL 205.2

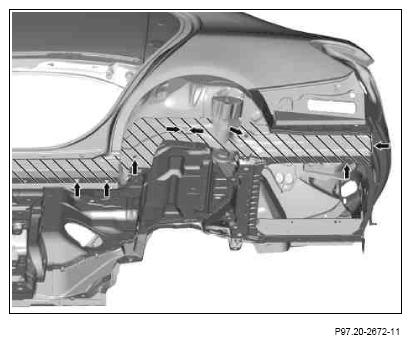

Rear longitudinal member, shown on model 205.0

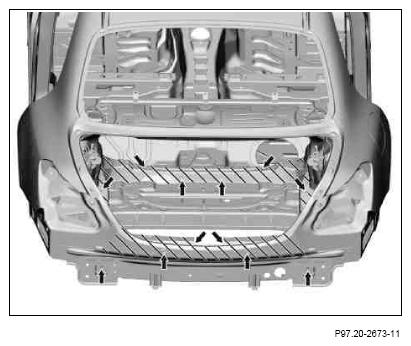

Rear area MODEL 205.0/1

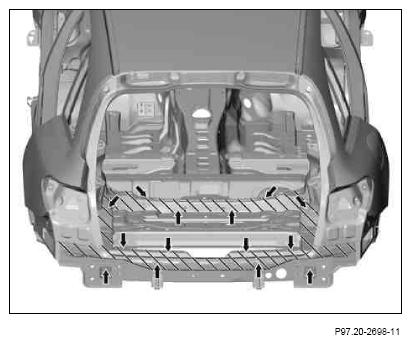

Rear area, shown on model 205.2

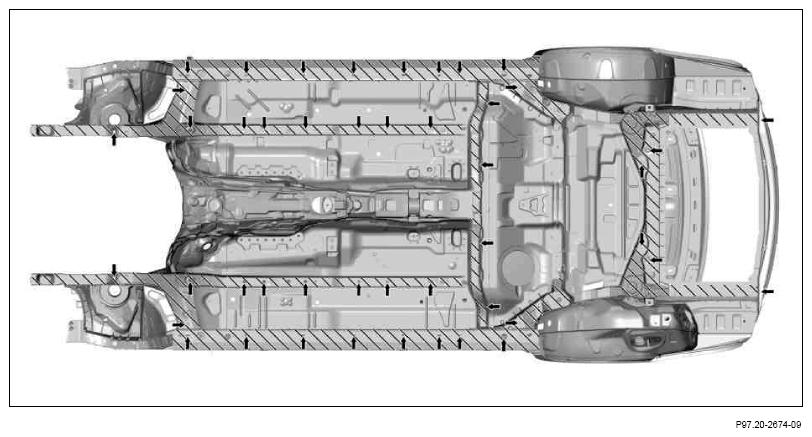

Underfloor, shown on model 205.0

Picture no., etc.	Work notes
	Risk of explosion and poisoning  caused by solvent vapors and gasses. Risk of injury  to skin and eyes when working with anticorrosion agents	Never spray corrosion protection on flames or hot, glowing objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
	Notes on cavity preservation		AH97.20-P-0001-01B
A	Cavity preservation in folding areas and hollow cavities	Install from inside through openings (arrows) with hook probe. Apply cavity preservation with spraying hose and nozzle (spraying angle 360°) as far as possible into cavities.
		Cavity preservation, solvent-free (1 l container)	*BR00.45-Z-1003-05A
B	Cavity preservation for inner surfaces and gaps	Uniformly moisten cavity preservation.
		Cavity preservation, solvent-free (1 l container)	*BR00.45-Z-1003-05A

Number	Designation	Order number
BR00.45-Z-1003-05A	Cavity preservation, solvent-free (1 l container)	A 000 986 72 70 05
