Replace waistline reinforcement for rear fender - AR63.50-P-0003LWR
MODEL 205.4
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| General information on body repair | AH60.00-P-0001-01A | ||
| General information on MB materials | AH98.00-P-9409-03A | ||
| Remove | |||
| 1 | Remove detachable parts in area to be repaired | ||
| 2 | Cover all detachable parts remaining in vehicle with spark protection blanket | ||
| 3 | Remove rear fender | AR63.50-P-1401LWR | |

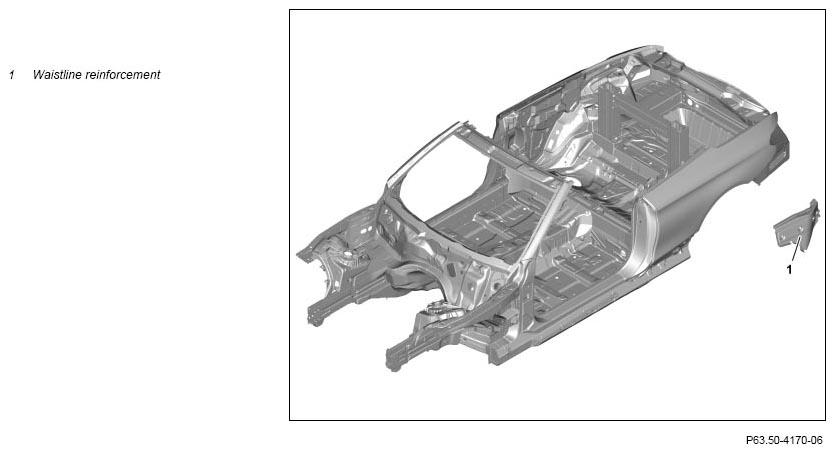

| 4 | Remove waistline reinforcement (1) | Round wire brush Spot weld milling machine Wet/dry vacuum cleaner |
AR63.50-P-0003-01LWR |
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| 5 | Prepare waistline reinforcement (1) | AR63.50-P-0003-02LWR | |
Round wire brush Zinc dust paint suitable for spot welding |
*BR00.45-Z-1001-07A | ||
| Install | |||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| Measures for preventing damage to components when performing electric welding and soldering work | AH60.00-P-0001-02A | ||
| 6 | Install waistline reinforcement (1) | AR63.50-P-0003-03LWR | |
| 000 588 01 84 00 Welder | WS60.00-P-0021K | ||
| 7 | Clean welds and sheet metal flanges | Round wire brush |
|
| 8 | Install rear fender | AR63.50-P-1401LWR | |
| 9 | Install all detachable body components in area to be repaired |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
