Remove/install electric parking brake switch - AR42.20-P-0505LW

MODEL 205

MODEL 253

Shown on model 205

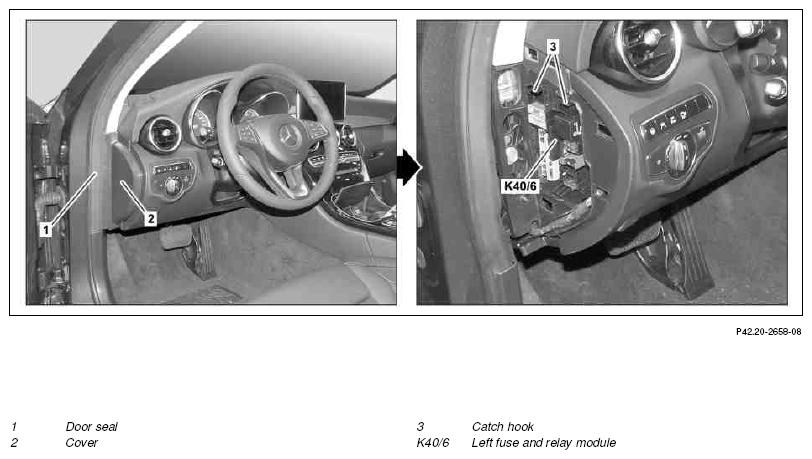

Fig 1: Electric Parking Brake Switch Remove/Install Components - Shown On Model 205 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

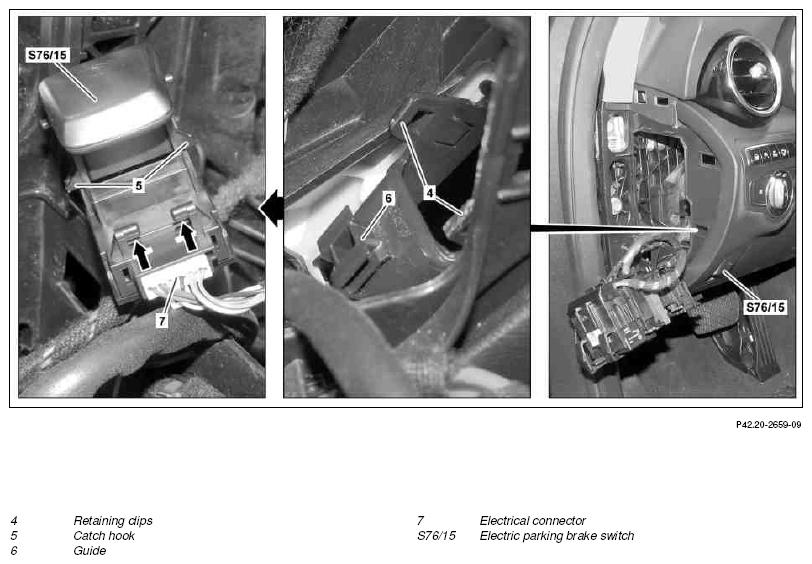

Fig 2: Electric Parking Brake Switch Remove/Install Components - Shown On Model 205 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition
2	Detach door seal (1) in cover (2) area
3	Unclip cover (2) and remove	Mounting wedge	Fig 3
4	Release catch hook (3), remove left fuse and relay module (K40/6) and place to one side with connected electrical lines
5	Use suitable tool to detach retaining clamps (4) for catch hooks (5) on switch for electric parking brake (S76/15)
6	Swivel switch for electric parking brake (S76/15) inwards towards firewall and upwards out of the guide (6)	Make sure that the pins (arrows) on the switch for the electric parking brake (S76/15) are correctly seated in the guide (6).
7	Release and disconnect electrical connection (7) from switch for electric parking brake (S76/15)
8	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
