Remove/install trunk partition limit switch - AR77.39-P-3699LWR

MODEL 205.4

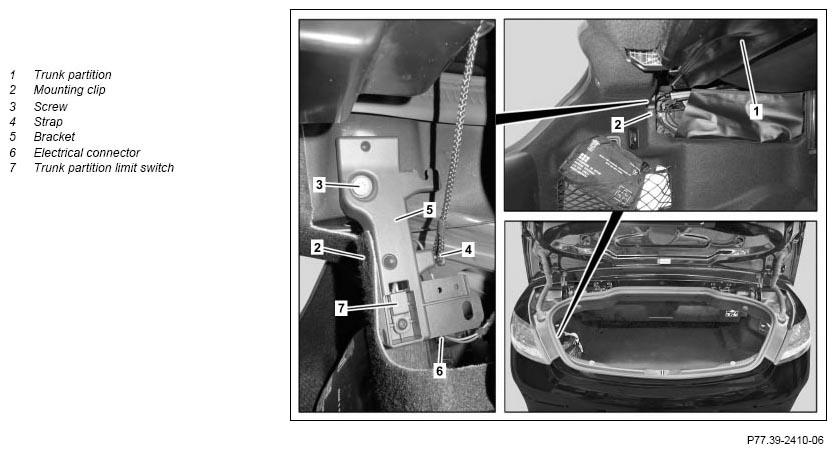

Fig 1: Trunk Partition Limit Switch Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open trunk lid
2	Fold trunk partition (1) up	For this, the soft top must be closed.
3	Remove retaining clip (2)
4	Unscrew bolt (3)
5	Unhook strap (4) on bracket (5)
6	Disconnect electrical connector (6)
7	Remove bracket (5) with trunk partition limit switch (7)
8	Install in the reverse order
