Remove/install soft top lock limit switch - AR77.39-P-3687LWR
MODEL 205.4

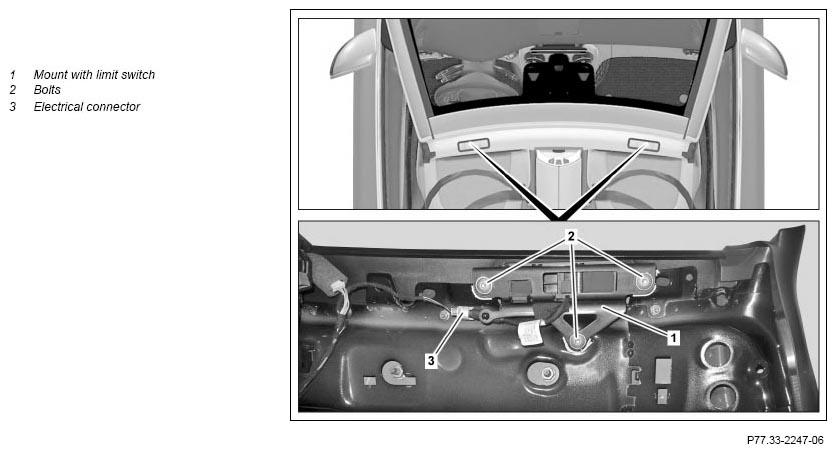

Shown on right side of vehicle
| Remove | |||
| 1 | Remove A-pillar paneling | AR68.30-P-4050LW | |
| 2 | Mark installation position of mount with limit switch (1) on roof frame | ||
| 3 | Unscrew bolts (2) | ||
| 4 | Disconnect electrical connector (3) | ||
| 5 | Remove mount with limit switch (1) | ||
| Install | |||
| 6 | Connect electrical connector (3) and position mount with limit switch (1) on roof frame | ||
| 7 | Tighten bolts (2) | *BA77.33-P-1003-02B | |
| 8 | Completely close soft top and check whether soft top lock runs properly into the mount with limit switch (1) and locks | If complaint present ↓ Loosen bolts (2) and readjust mount with limit switch (1). |
*BA77.33-P-1003-02B |
| 9 | Completely open soft top | ||
| 10 | Install A-pillar paneling | AR68.30-P-4050LW |
MECHANICAL SOFT-TOP COMPONENTS
| Number | Designation | Model 205.4 | |
|---|---|---|---|
| BA77.33-P-1003-02B | Bolt, soft top lock to roof frame | Nm | 10 |
