Remove/install net on wind deflector - AR77.25-P-1004LWR

MODEL 205.4

with CODE 288 (Draft stop for convertible)

MODEL 217.4

Shown on left side of vehicle

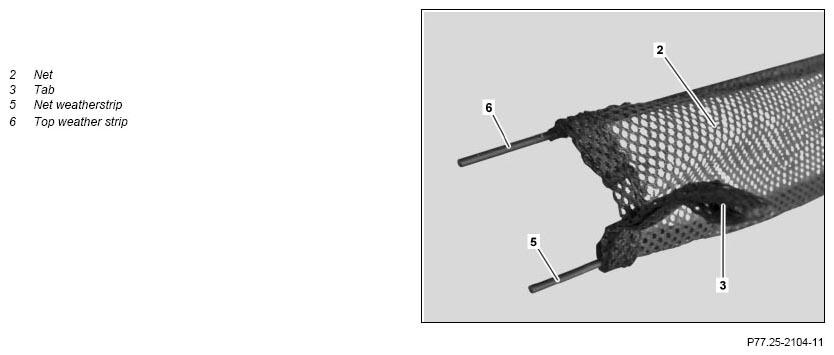

Fig 1: Wind Deflector Net Remove/Install Components - Shown On Left Side Of Vehicle

Courtesy of MERCEDES-BENZ USA

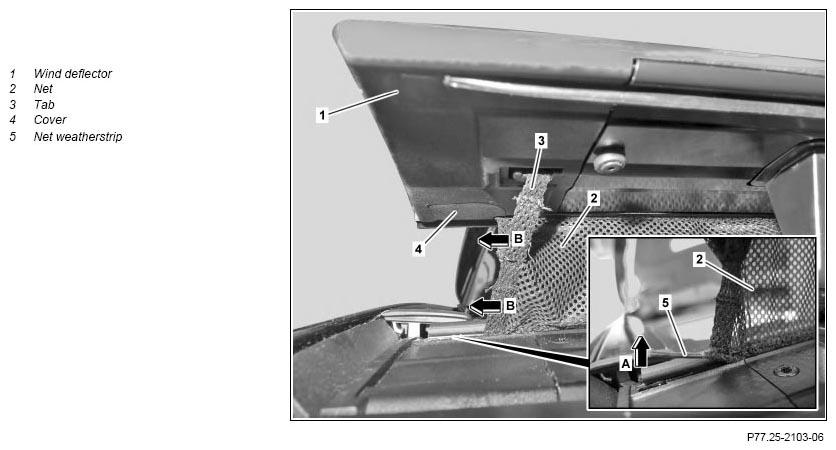

Fig 2: Wind Deflector Net Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch on ignition	The ignition must remain switched on during the entire repair procedure.
2	Move out wind deflector (1) with soft top closed	The wind deflector (1) is moved to the service position.
3	Unhook tab (3) on both sides
4	Unclip cover (4) on left side
5	Unclip bottom net weatherstrip (5) on left side (arrow A)
6	Uniformly pull net (2) out together of lower net weatherstrip (5) and upper net weatherstrip (6) to left (arrows B)	The lower net weatherstrip (5) is shorter than the upper net weatherstrip (6). The left and right tab (3) must point toward rear.
	Clean
7	Clean guides for lower net weatherstrip (5) and upper net weather strip (6)
8	Install in the reverse order
