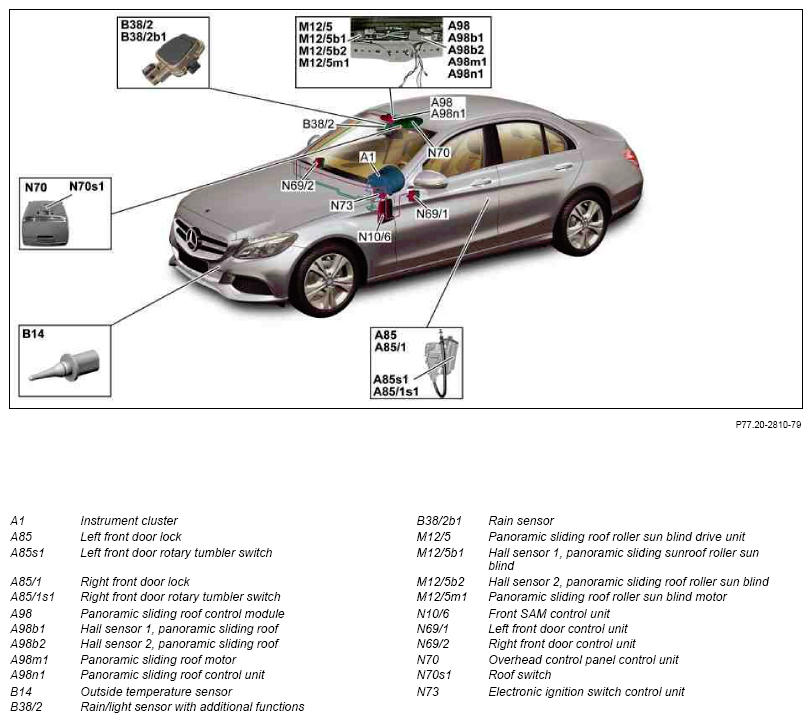

Overview of system components, panoramic sliding sunroof - GF77.20-P-9991RF
MODEL 205, 253 with CODE 413 (Automatic panoramic sliding sunroof)
Shown: Model 205.0
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Component description for panoramic sliding roof control module | A98, A98n1 | GF77.20-P-4106RF | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005RF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RF | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216RF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RF | |
| Table of contents, function description for electric panoramic sliding sunroof | GF77.20-P-0997RF |
