Overview of system components for soft top, component description - GF77.30-P-9997RF

MODEL 205.4

Soft top control

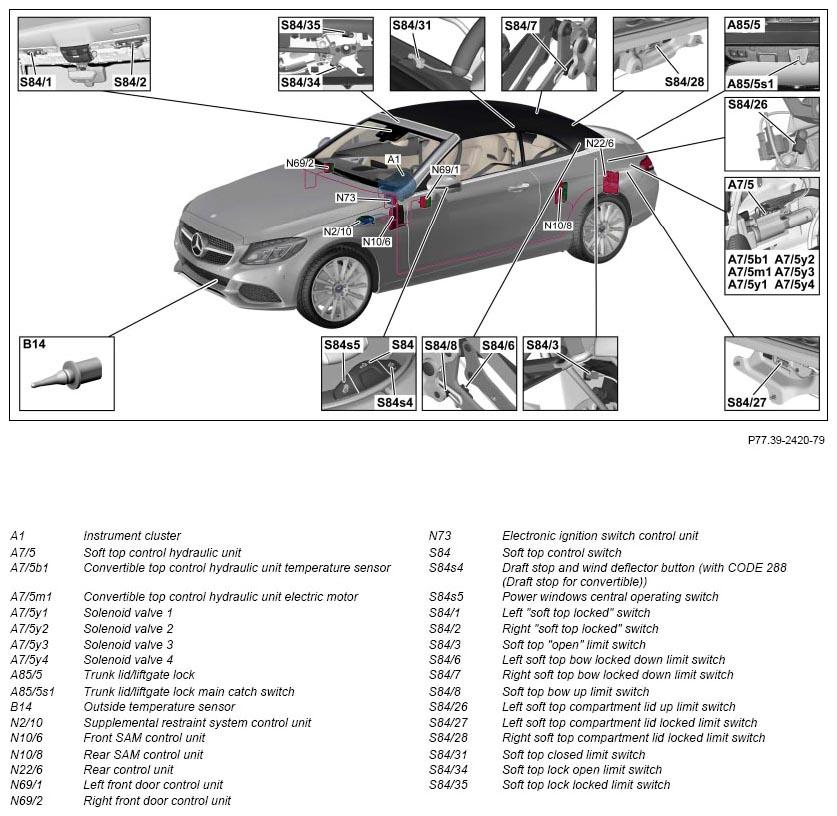

Fig 1: Overview Soft Top System Components - Soft Top Control

Courtesy of MERCEDES-BENZ USA

Soft top control, power window

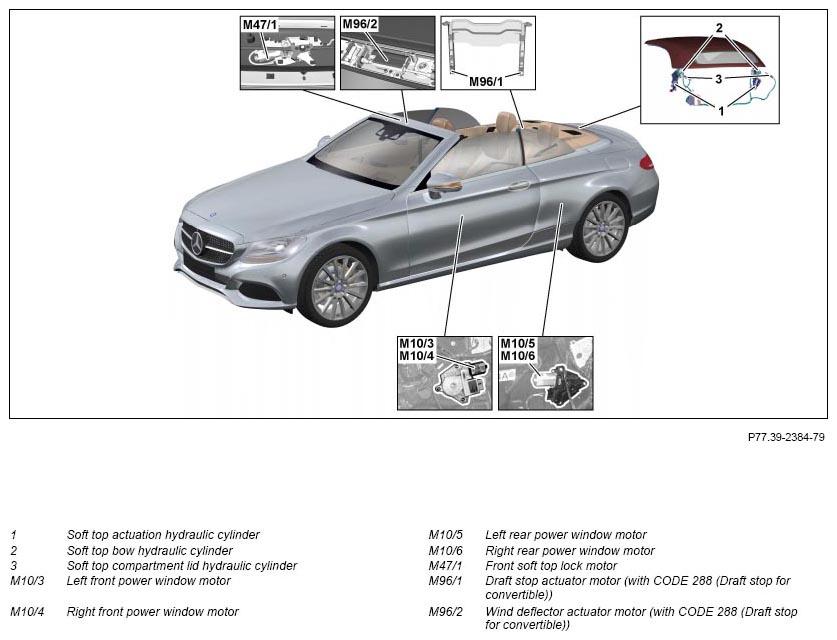

Fig 2: Overview Soft Top System Components - Soft Top Control, Power Window

Courtesy of MERCEDES-BENZ USA

Trunk partition

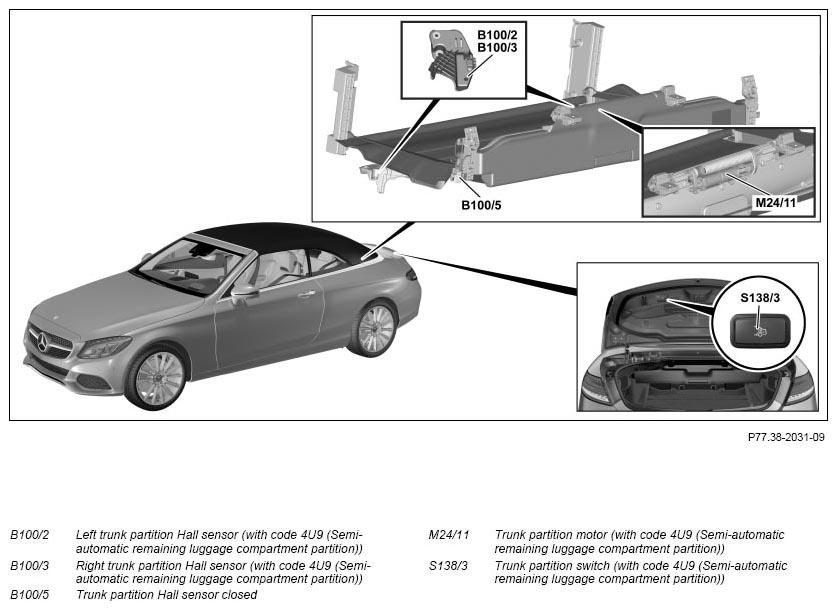

Fig 3: Overview Soft Top System Components - Trunk Partition

Courtesy of MERCEDES-BENZ USA

	Component description for instrument cluster	A1	GF54.30-P-6000RF
	Supplemental restraint system control unit, component description	N2/10	GF91.60-P-4080RF
	Component description for front SAM control unit	N10/6	GF54.21-P-7010RF
	Component description for rear SAM control unit	N10/8	GF54.21-P-7030RF
	Rear control unit, component description	N22/6	GF54.21-P-4134RF
	Component description for left front door control unit	N69/1	GF72.29-P-6001RF
	Component description for right front door control unit	N69/2	GF72.29-P-6009RF
	Component description for the electronic ignition lock control unit	N73	GF80.57-P-6001RF
	Table of contents for function description of soft top		GF77.30-P-0999RF
